Micro Volume Spectrophotometer EZL-MS152 Catalog

Overview

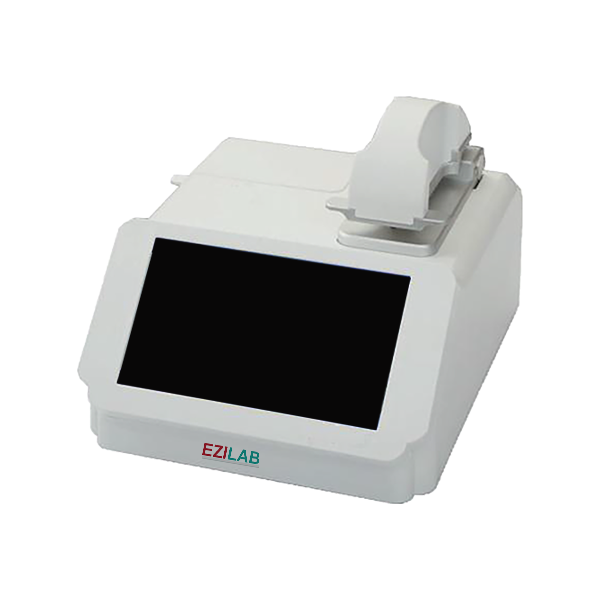

The Micro Volume Spectrophotometer EZL-MS152 is designed to measure very small sample volumes directly on a detection surface without dilution and in the shortest possible time. It uses the theory of light reflection and liquid surface tension to keep the sample in place during measurement. Within a wavelength range of 200 nm to 800 nm, volume between 0.5 and 2.0µl can be determined with remarkable precision and consistency with results being displayed on a large 7 inch touch screen. The test chamber minimizes all stray light, and the fixed cover reflector design totally reduces the tolerance range produced by mechanical movements.

Specifications :

Wavelength Range	200 nm – 800 nm
Wavelength Accuracy	1 nm
Spectral Resolution	≤3 nm (FWHM at Hg546 mm)
Minimum Sample Size	0.5 - 2µl
Path Length	0.2 mm 1.0 mm
Absorbance Precision	0.003Abs
Absorbance Accuracy	1% (7.332Abs at 260nm)
Absorbance Range	0.02 – 100A
Nucleic Detection Range	2 – 5000ng/µl (dsDNA)
Detector Type	2048 – Linear CCD array
Measurement Time	USB
Data Output	USB
Operating Voltage	24V DC
Operating Power	25 W
Standby Power	5 W
Packing Dimension (W×D×H)	500×495×310 mm
Gross Weight	9.2 Kg

Features :

• - Micro-volume measuring
• - Large 7-inch touch screen display
• - Fast, easy and accurate micro-volume measurements
• - Long life xenon flash lamp
• - Turn on and instantly measure without lamp warm up time
• - Full scan capability from 200nm to 800nm within 6 seconds
• - Test chamber minimizes all stray light
• - Detects nucleic acids up to 5000ng/µl
• - Robust and sustainable
• - Micro-volume sample port
• - Low energy usage
• - 0.2mm to 1mm fixed path length
• - Easy to clean design – no sample cross-over
• - Data can be printed with a built in-printer and output via SD-RAM card
• - Automatic switch off function if system is idle for more than 5 mints

Applications:

It is widely used for PCR analysis, DNA or RNA micro array, colorimetric protein methods in laboratories, pathology institutes and food industries etc.
