-86°C Ultra-Low Temperature Freezer EZL-UF159 Catalog

Overview

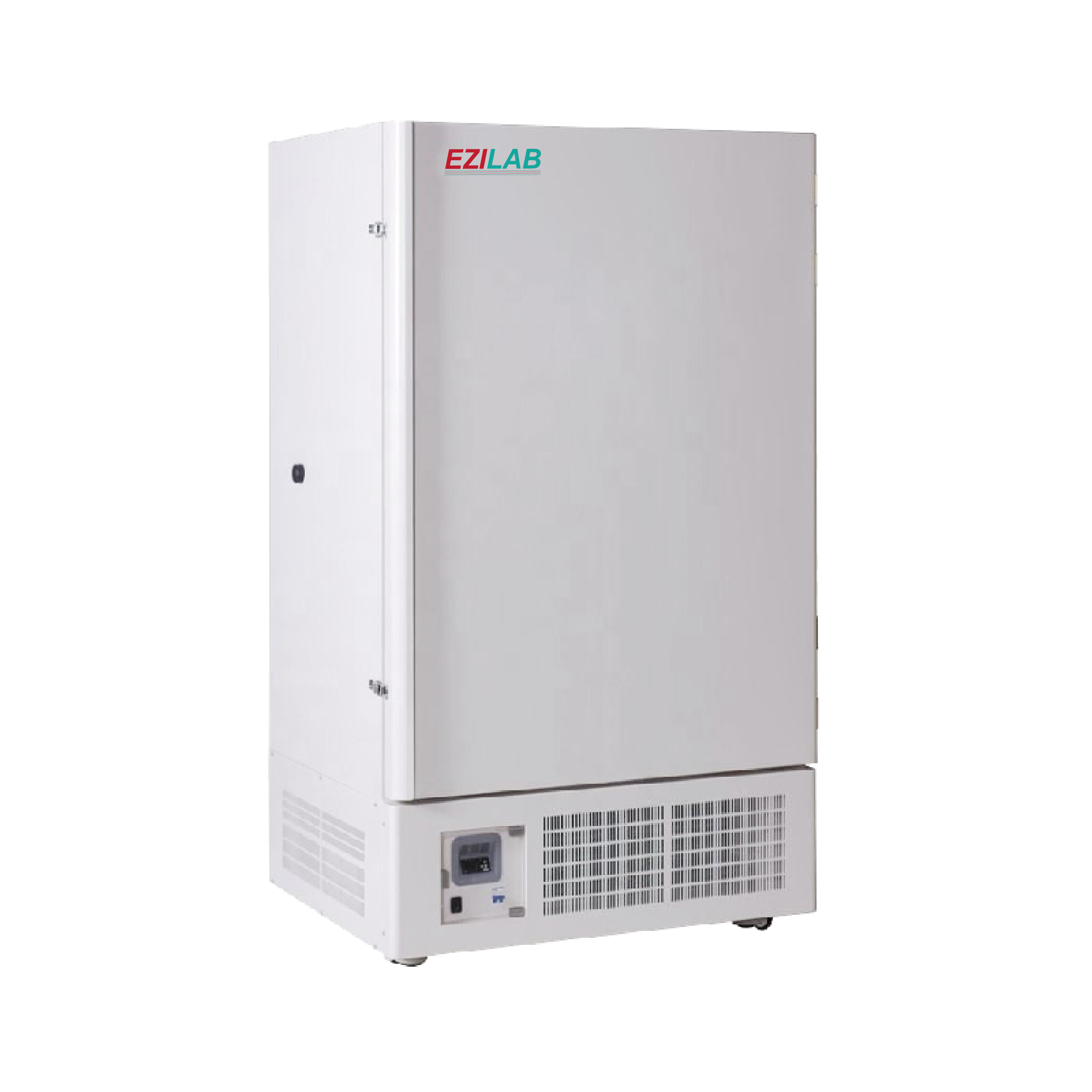

-86°C Ultra-Low Temperature Freezer EZL-UF159 is a vertical freezer designed for the storage of various biological products. It has a capacity of 938 liters and operates in a temperature range of -60° to -86° C, which can be adjusted depending on the environment. A digital display unit is included in this product for easy parameter viewing and control. It has a simple cabinet design that boosts performance and output results. The single door provided is easy to use and includes an inner door for minimal temperature loss, which improves freezer stability.

Specifications :

Capacity	938 L
Temperature Range	-60° to -86°C
Maximum Ambient Temperature	28°C
Cooling Time	300 minutes (no load)
Hold Over Time	180 minutes
Noise	55 dB
Defrost	Manual
Insulation	120 mm
Sensor	PT 100
Compressors	2
No of Shelves	3
Inner Material	307 Stainless steel
Outer Material	Galvanized sheet spraying
Power	1350 W
Energy Consumption	17.2 KW/Hr
Power Supply	220V 50 Hz
Interior Dimension (W×D×H)	1240×1000×2000 mm
Exterior Dimension (W×D×H)	1000×700×1335 mm
Net Weight	290 Kg
Gross Weight	330 Kg

Features :

• - Digital display for ease of operation
• - Adjustable shelves for sample holding
• - This freezer is used for storing all sorts of medical equipment
• - Independent inner door minimizing loss of cold temperature
• - Easy to use built-in handle design
• - Condenser requires no liquid cooling agent
• - CFC free refrigeration system
• - Multi-level security
• - Compressors are protected with constant flow of refrigerant
• - Rugged construction with cold rolled steel cabinets
• - Stainless steel interiors
• - Direct cooling for optimized temperature stability and uniformity

Applications:

Used for storing and preservation of reagents, medicines, vaccines, disinfectant, liquid chemical Sterilants and also meets the requirements in the field of R&D, biomedical, electronic and chemical industries.
