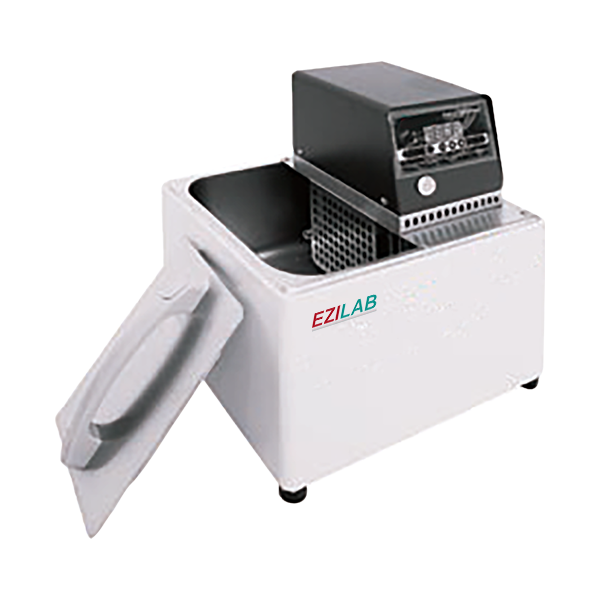

Circulator Oil Bath EZL-OB181 Catalog

Overview

Circulator Oil Bath EZL-OB181 is a circulatory bath with an intelligent microprocessor control system offering an accurate temperature control for straight forward applications in the range of 0°C to 100°C. With the circulating system, the water bath can let the heated liquid flow off from the tank and offer a secondary constant-temperature field. The 11-Liters stainless steel bath with 8 Liter/min pump capacity is seamless and, eliminating the possibility of rust and leaks, and the rounded corners are easy to clean. The control unit achieves the desired temperature quickly and maintains a constant temperature to prevent sample overheating.

Specifications :

Capacity	11 Liters
Temperature range	Ambient +5°C to 200°C
Temperature accuracy	±0.5°C
Pump capacity	8 Liters/min
Timer range	99 Hr 59 min
Thermocouple	PT-100Ω
Temperature Regulator	SSR controller
Temperature Controller	Digital PID controller
Internal Material	Stainless steel plate
External Material	Steel plate with powder coating
Heater Capacity	2 KW
Supply Voltage And Frequency	AC 230V, 50/60 Hz
Bath Dimension (W×D×H)	300×250×150 mm
External Dimension (W×D×H)	350×300×400 mm

Features :

• - The control function is automatically adjusted by intelligent PID
• - It features a solid durability with advanced construction
• - To meet environmental protection standards, CFC-free refrigeration technology is used
• - A high-quality fully enclosed air-cooled compressor cooling system with automatic thermal overload protection and low noise is used
• - Alarms for upper and lower temperatures, as well as an overheat warning system
• - The inner material is high-quality stainless steel
• - An external circulating pump can be used to create a second constant temperature field outside the bath
• - A cold liquid can be used outside the tank to cool the experimental container
• - Automatically identify the difference between the set temperature and the ambient temperature
• - Big screen LCD display, easy to operate
• - Inner groove can be adjusted with lifting bracket to adjust the height of special experimental samples
• - High temperature can be dropped down to low temperatures immediately with the help of one key

Applications:

The Digital Water Bath, is widely used in research institutes, universities, corporate quality control departments, and industrial sectors such as petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing, and chemical analysis.
