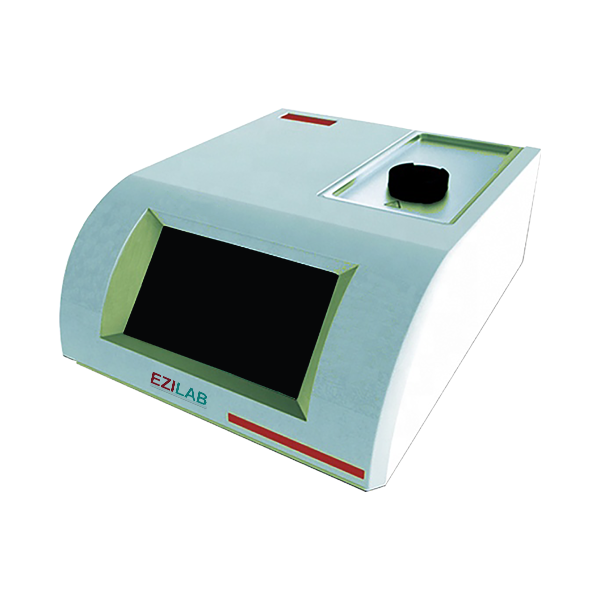

Automatic Refractometer EZL-AR171 Catalog

Overview

Automatic Refractometer EZL-AR171 offers fast refractive index measurements in the range of 1.30 to 1.70, with automatic temperature control from 5° to 70°C range. It adopts the Peltier temperature control system, ensuring 0 to 100% brix measuring precision and steady temperature for the entire test. Measurement prism consists of high hardness sapphire glass, with outstanding corrosion and scratch properties. The technology and compactness of the refractometer transforms time consuming measurements into highly efficient quality control. This device is not affected by environmental conditions and require minimal cleaning and no maintenance.

Specifications :

Refractive Index Measuring Range	1.30000 – 1.70000nD
Measuring Error	±0.0001nD
Measuring Resolution	0.0001/0.00001 (optional)
Brix Measuring Range	0 – 100%
Temperature Control Mode	Peltier temperature control
Temperature Display Range	10 – 85°C
Temperature Control Range	5 – 70°C
Temperature Control Accuracy	±0.05°C
Interface	RS232, USB, Ethernet Interface
Data Storage Capacity	4G
Display	7” TFT LCD touch screen
Power Consumption	45 W
Power Supply	AC110/220V±10%, 50/60HZ
External Dimension (W×D×H)	365×300×150 mm
Packing Dimension (W×D×H)	480×410×310 mm
Gross Weight	10 Kg

Features :

• - Precise concentration measurement for quality control
• - Measure all consistencies within seconds
• - Unaffected by environmental humidity, temperature or vibrations
• - Intuitive user interface allows access to all measurement-relevant features on a 7” color touch screen
• - Automatic warnings if the measurement prism is not clean or the sample volume is too low
• - Auto temperature control system
• - Ultra long life source
• - Perfect measuring prism
• - Space saving, maintenance free instrument
• - Cloud service system

Applications:

Used for routine sugar and beverage analysis, ideal for concentration measurement of chemicals, for quality control in the chemical, beverage, food, and petroleum industry.
