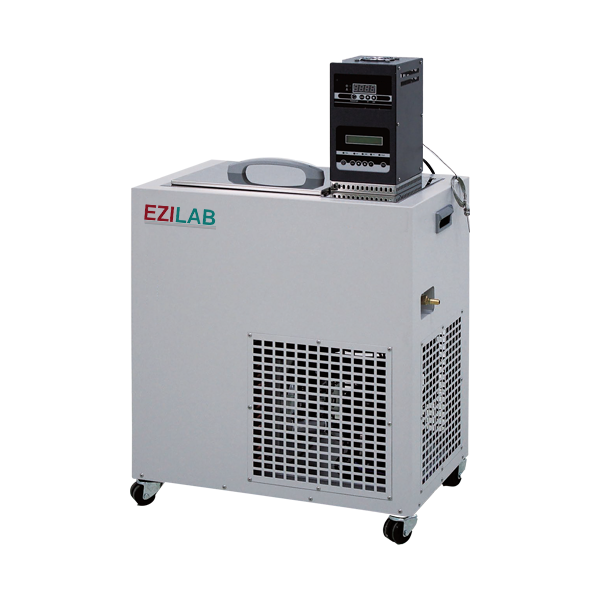

Refrigerated Circulator Bath EZL-RB153 Catalog

Overview

Refrigerated Circulator Bath EZL-RB153 is a digitally controlled bath that offers exceptional performance for routine and sophisticated applications requiring precise temperature control in the -20°C to 200°C range. The bath vessel has a capacity of 6 liters/min and a volume of 22 liters, and it can be emptied using the drain fitting. The circulator includes intelligent control optimization for adaptive intelligent PID temperature control and can be configured with a variety of cooling capacities to meet the needs of specific applications.

Specifications :

Capacity	22 Liters
Temperature range	-20°C to 200°C
Temperature Sensor	PT-100Ω
Pump Capacity	6 liters/min
Refrigerator	Air cooling unit system
Timer Range	99 Hr 59 min
Temperature Controller	PID controller
Internal Material	Stainless steel
External Material	Steel plate with powder coating
Heater	Stainless steel
Insulation	Poly urethane foam
Safety Device	Over temperature protector
Power	AC 200V, 60Hz
Heater Capacity	2.5 KW
Internal Dimension (W×D×H)	500×300×150 mm
External Dimension (W×D×H)	650×450×1140 mm

Features :

• - Convenient to use on table
• - External circulation function with the powerful circulation pump
• - Optimum temperature is controlled via PID auto-turning control function
• - Excellent safety with heater cut-off function without water
• - Low noise level operation in a sealed space
• - Safety apparatus for the electric leakage and excess
• - Over temperature and low level protection
• - Fault indication display
• - Memory capacity for one program of up to 10 segments
• - Timer function for reaction timing, 99 Hrs 59 min, with audible alert and heater control

Applications:

The units can be used in mini plants, for determining the freezing point, for deep temperature calibration, petroleum tests and temperature control of measuring devices as well as for materials testing and quality control.
