UV-Visible Spectrophotometer EZL-US132 Catalog

Overview

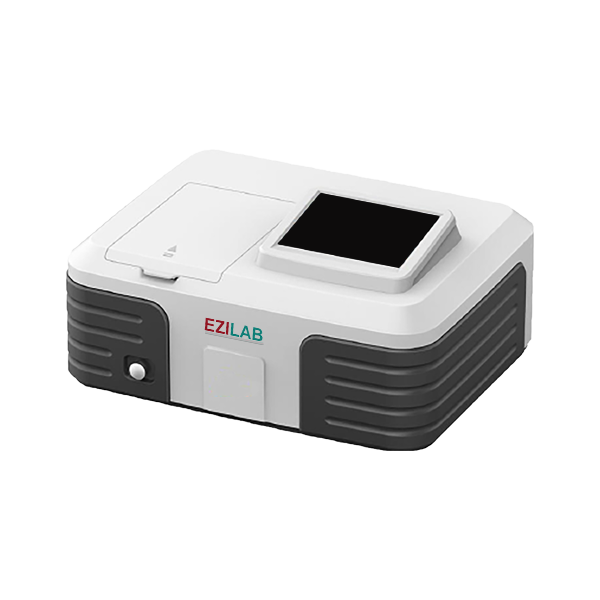

UV-Visible Spectrophotometer EZL-US132 is a tabletop double beam spectrophotometer that effectively performs routine laboratory work and also for various demanding applications. It provides high-speed wavelength scanning in the UV and visible spectrums, as well as pre-programmed procedures, including the most commonly used testing methods today. It operates within a 190 nm to 1100 nm wavelength range with a spectral bandwidth of 2 nm. It is equipped with an onboard color touch screen displaying clear graphs and parameters has a sealed and solvent resistant screen with alpha-numeric keypad.

Specifications :

Wavelength Range	190 nm – 1100 nm
Spectral Bandwidth	2 nm
Optical System	Double beam
Wavelength Accuracy	±0.5 nm
Wavelength Repeatability	≤0.2 nm
Photometric Range	-0.4 – 4A, 0 – 200%T, 0 – 9999C
Photometric Accuracy	±0.2%T (0-100%T) ±0.002Abs (0-0.5Abs) ±0.004Abs (0.5-1.0Abs)
Photometric Repeatability	≤0.15%T (0-100%T) 0.001Abs (0-0.5Abs) 0.002Abs (0.5-1.0Abs)
Stability	±0.001A/h @ 500 nm
Baseline Flatness	±0.001A
Stray Light	≤0.05%T @ 220 nm, 360 nm
Noise	±0.0005A
Cell Holder	4 cell holder
Display	800×840 color touch screen
Lamps	Deuterium and Tungsten Halogen lamps
Detector	Silicon photodiode
Data Output Port	USB
Printer Port	Parallel port
Power Supply	AC220/50Hz, 110V/60Hz
Packing Dimension (W×D×H)	860×660×465 mm
Gross Weight	35 Kg

Features :

• - 800×840 color touch screen display
• - Stand-alone system which can recognize various measurements
• - Uses a rigid 8 mm aluminum base as optical mount to ensure stability and reliability
• - Automatic system calibration
• - Optical spare parts to ensure low stray light, stability and reliability
• - Data can be exported to USB directly
• - Intelligent alarm function
• - Displays several groups of data at same time for direct reading
• - System encryption function
• - Simple and elegant design for easy operation
• - Reduced handling steps
• - It can connect to the printer and output the measurement results directly

Applications:

It is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory applications. It is also extensively used for quality assurance tests in various educational institutes, universities and laboratories.
