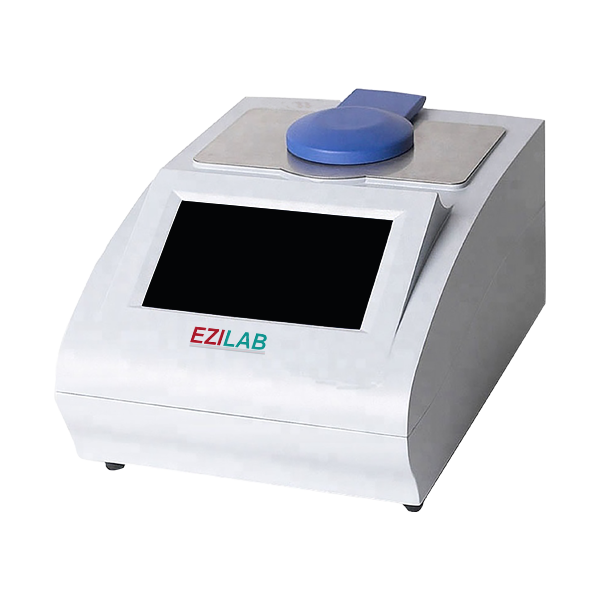

ABBE Digital Refractometer EZL-DR171 Catalog

Overview

ABBE Digital Refractometer EZL-DR171 is a fully automatic ideally suited device for fast and precise determination of refractive index nD between 1.300 and 1.700 range. The refractive index can be determined for a temperature range of 0 to 60°C with an accuracy of 0.5°C. The technology and compactness of the refractometer transforms time consuming measurements into highly efficient quality control. This device is not affected by environmental conditions and require minimal cleaning and no maintenance.

Specifications :

Measuring Range	1.30000 – 1.70000 nD
Measuring Resolution	±0.00001 nD
Measuring Accuracy	±0.0002 nD
Brix Measuring Range	0 – 100%
Brix Measuring Resolution	±0.01%
Brix Measuring Accuracy	±0.1%
Test Mode	8
Temperature Control Range	0 – 60°C
Temperature Resolution	0.1°C
Temperature Accuracy	0.5°C
Interface	RS 232, USB
Display	7” LCD touch screen
Prism	Hard glass
Power Supply	AC 110V/220V±10%, 50/60 Hz
External Dimension (W×D×H)	340×200×110 mm
Package Dimension (W×D×H)	500×330×220 mm
Gross Weight	9 Kg

Features :

• - Fully automatic measuring
• - Unique performance with reliable results within seconds
• - Hard glass sapphire prism
• - Simple to use equipment
• - Reliable and robust design
• - 7” inch LCD touch screen display
• - Focusable eyepiece and dispersion correction prism
• - Adjustable, built-in illumination

Applications:

It is an ideal instrument for practical demonstrations and experiments in chemistry and chemical laboratories, medical, pharmaceutical, industrial fluid, chemical, petro-chemical, plastic, food and beverage industries etc. Suitable for use with either transparent or translucent liquids or solids.
