Portable Steam Sterilizer EZL-PS71 Catalog

Overview

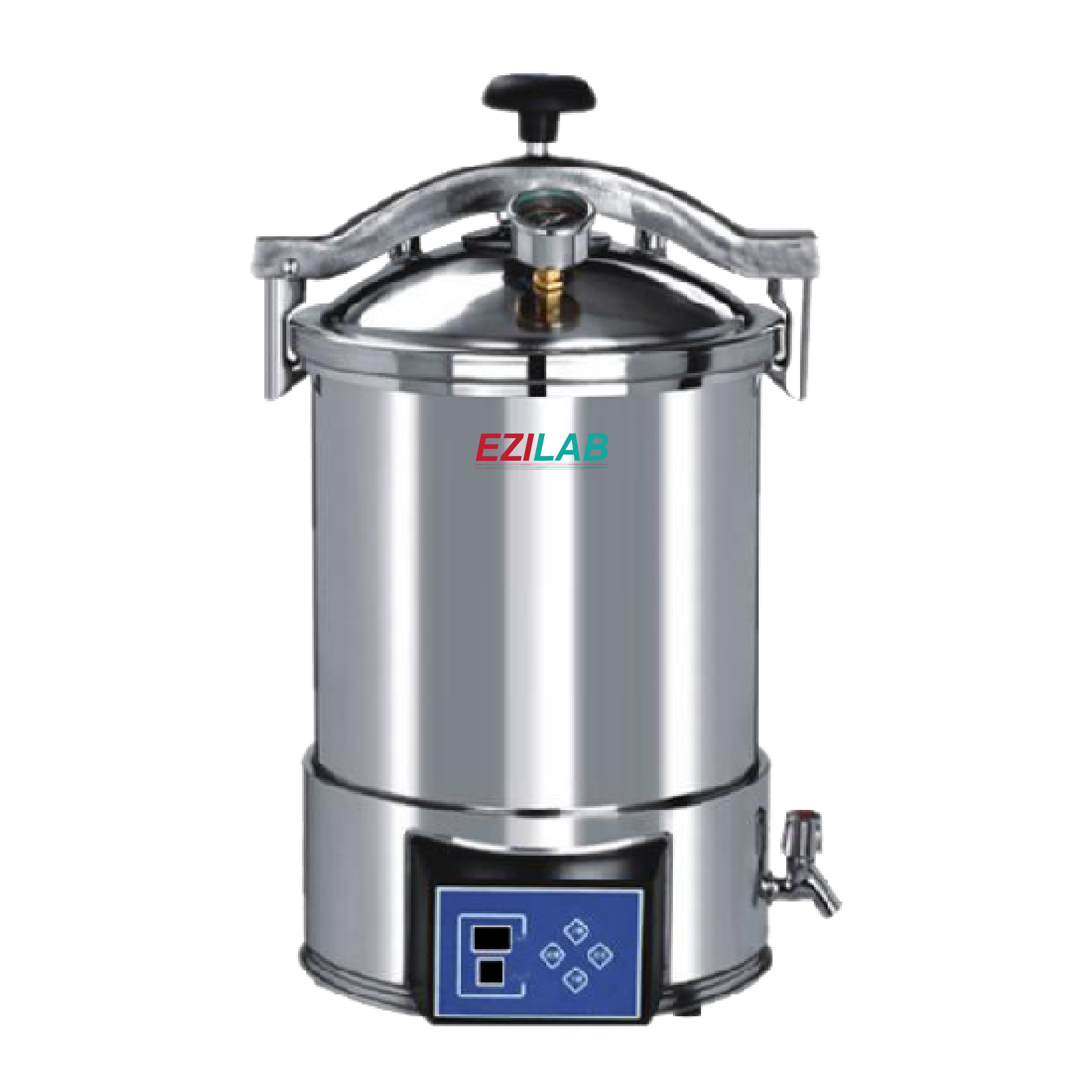

Portable Steam Sterilizer EZL-PS71 is an electrical equipment controlled by a microprocessor unit with a capacity of 18 L. The unit operates at 126°C temperature range within a pressure range of 0.14-0.16MPa for 0-99 minute’s timer range. The Class N sterilizer is equipped with an LED display along with soft touch buttons to display the current working status and also to adjust the working parameters of the product. It is made up of a high grade stainless steel material with outer body having a hand wheel type for quick open door structure.

Specifications :

Sterilizing Volume	18 L
Working Pressure	0.14 – 0.16 MPa
Working Temperature	126°C
Temperature Adjust Range	105 – 126°C
Maximum Safety Pressure	0.165 MPa
Timer Range	0 – 99 minutes
Heat Average	≤ ±1°C
Power Consumption	2 KW
Power Supply	AC 220V, 50 Hz
Sterilizing Chamber Dimension	ɸ280×390 mm
Packaging Dimension	420×420×630 mm
Net Weight	12 Kg
Gross Weight	14 Kg

Features :

• - Over-heating and pressure warning indicator
• - Fully stainless steel structure
• - Quick hand wheel type open door structure
• - Easy to operate, safe and reliable
• - Stainless steel sterilizing baskets
• - Flexible metal exhaust tube
• - Portable and economical operation
• - Can be used over any heat source
• - Low water level indicator
• - Electrically heated device

Applications:

The product can be utilized in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc. to sterilize medical equipment, surgical dressings, glass utensils, solutions and substrates.
