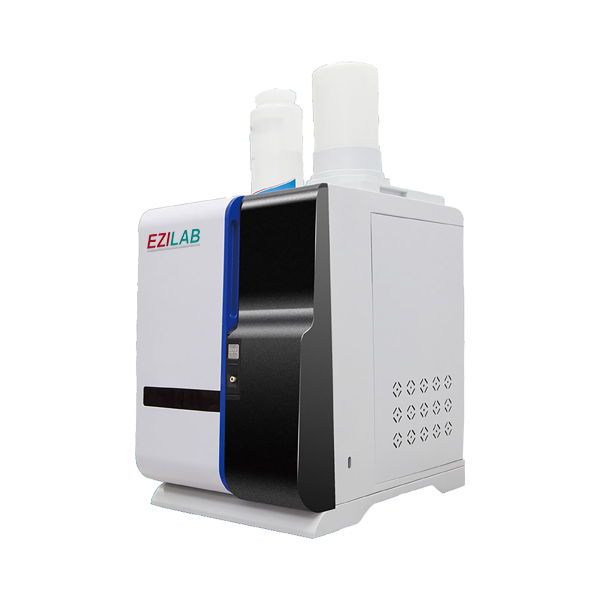

Ion Chromatograph EZL-IC64 Catalog

Overview

Ion Chromatograph EZL-IC64 is a high stability device with upgraded circuit technology which can small molecular organic acids. The system includes a 42 MPa pressure pump with a flow rate range of 0.001 to 9.999 mL/min. It not only detects anions, cations, and other polar substances, but it also separates ions with different orders of magnitude difference while operating at temperatures ranging from 5° to 60° C. The conductivity detector has a 0.8L cell volume and can detect signals with concentrations ranging from ppb to ppm without adjusting the range.

Specifications :

Cell Volume	≤0.8 µL
Detection Range	0 to 50000 µS/cm
Detection Resolution	≤0.0020 ns/cm
Electronic Noise	0.02 ns
Baseline Noise	≤0.001 µs
Baseline Drift	≤0.001 µs
Pump Maximum Pressure	42 MPa
Pressure display accuracy	≤0.1 MPa
Flow Rate Range	0.001 to 9.999 mL/min
Injector Maximum Pressure	35 MPa
Detector Maximum Pressure	10.0 MPa
Eluent Type	KOH/NaOH
Eluent Concentration Range	0.1 to 100 mM
Concentration Increment	0.1 mM
Pressure	0.1 – 5.0 mL/min
Operating Temperature Range	≤ 30 MPa
Temperature Accuracy	5° to 60°C
Power Requirement	± 1°C
Dimension (L×W×H)	150 W
Net Weight	350×470×650 mm
Gross Weight	34 Kg

Features :

• - Flow rate range: with 0.001 to 9.999 mL/min
• - High pressure resistance
• - Modular design convenient to operate
• - Eluent pre-heating
• - Built-in low pressure degassing technology to eliminate bubble interference for stability
• - Optical automatic injection system is used for larger sample volumes, which feature automatic dilution
• - Observatory intelligent work station
• - Intelligent switch to complete the startup parameter setting and shutdown operation
• - Accurate and reliable system
• - Run more samples and more molecules on a single system
• - Flexible processing with high productivity
• - Large size LCD color screen for easy operation
• - Intelligent temperature control to ensure better accuracy of analysis

Applications:

It is widely used in the fields of environment protection, disease control, food industries, chemical industries commercial labs, electronics, mining and metallurgy.
