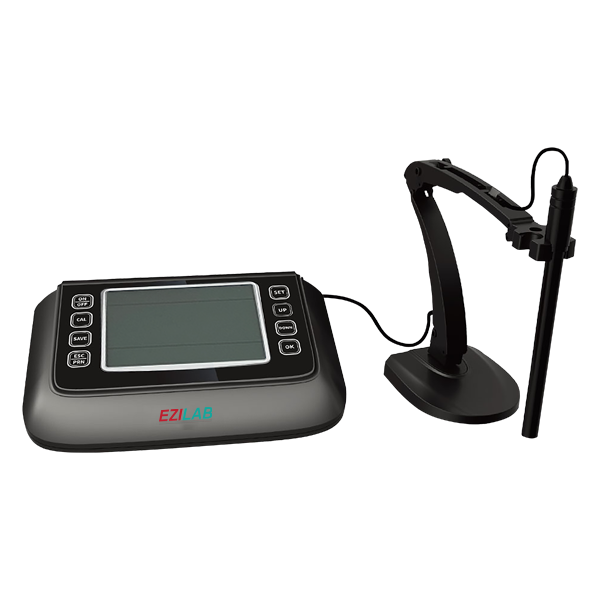

Tabletop Conductivity Meter EZL-TCM122 Catalog

Overview

Tabletop Conductivity Meter EZL-TCM122 has a compact design and an LCD screen that displays all of the necessary parameters. This meter measures conductivity from 0.00 µS/cm to 20.00 µS/cm, 2.00 mS/cm to 200.0 mS/cm, 0 to 100 g/L TDS, and 0 to 100 MW.cm resistivity. Controls temperature variations with an automatic temperature compensation range of 0 °C to 100 °C and works at ambient temperatures ranging from 5 °C to 40 °C, providing greater precision.

Specifications :

Conductivity	Measuring Range 0.00 to 20.00 μS/cm 20.0 to 200.0 μS/cm 200 to 2000 μS/cm 2.00 to 20.00 mS/cm 20.0 to 200.0 mS/cm Resolution 0.01/0.1/1 µS/cm 0.01/0.1 mS/cm Accuracy Electrode: ± 1.0 % FS Instrument: ± 1.50 % FS
Resistivity	0 to 100 MΩ.cm
TDS	0 to 100 g/L
Salinity	0 to 100 ppt
Temperature	Measuring Range 0 °C to 100 °C Resolution 0.1 °C Accuracy ± 0.5 °C
Working Conditions	Temperature 5 °C to 40 °C Humidity 5 to 85 %
Power	12V/1A
Dimensions (W×D×H)	240×170×70 mm
Weight	600 g

Features :

• - 6.5 to inch LCD screen displaying all parameters
• - Long lasting Omron and light touch panel
• - Auto to calibration, automatic temperature compensation, data storage, USB port, self to diagnose are its functions
• - Data storage of 500 sets of test data can be edited and is transferable
• - Auto to recognition of 8 conductivity standard solutions
• - 1 to point calibration of conductivity electrode meet accuracy for test 0.5 µS/cm to 200 mS/cm
• - Switch between conductivity, TDS, salinity and resistivity
• - Multinomial calculation of TDS, salinity
• - Bluetooth block, supports wireless Bluetooth printer and optional data transfer to cell phone
• - Dustproof and waterproof meter meet IP54 Grade

Applications:

It has a wide range of applications, including high precision conductivity measurements in scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.
