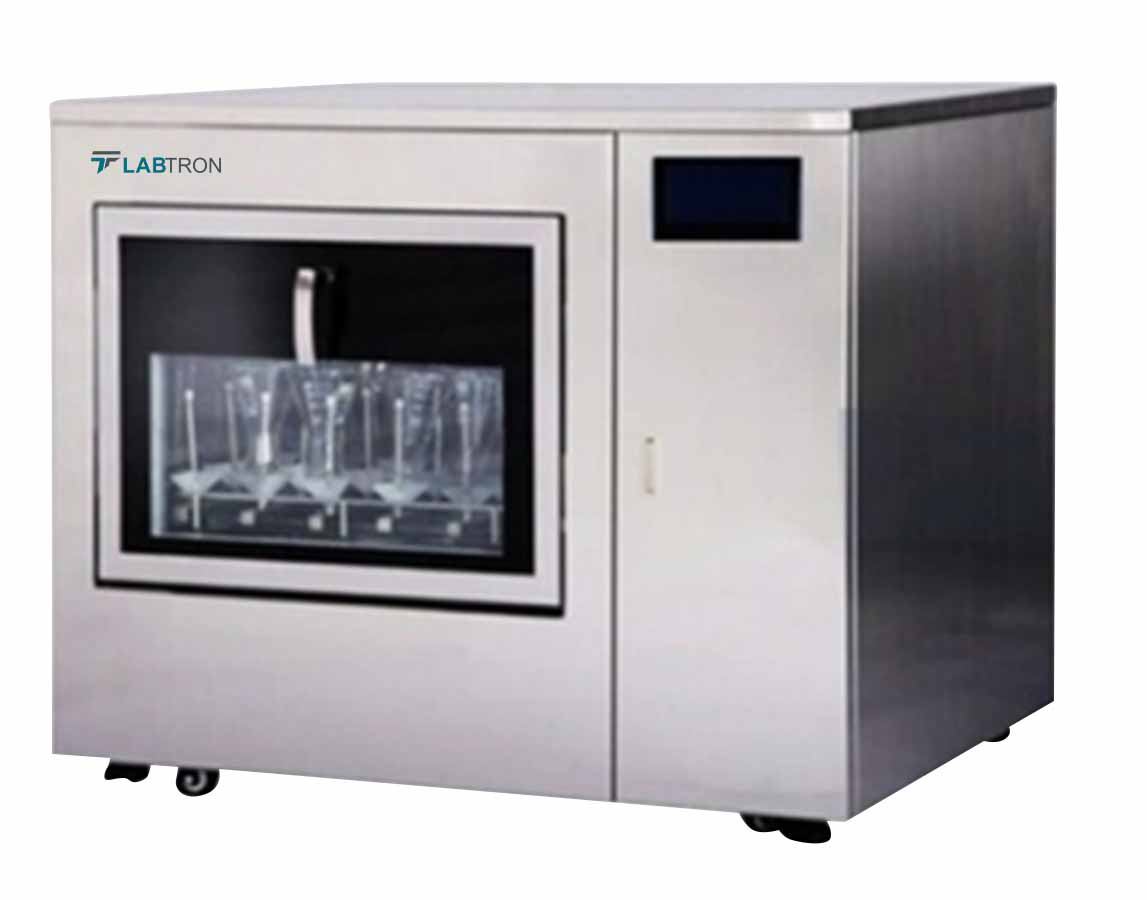

Automatic Glassware Washer LGW-A10 Catalog

Overview

Labtron offers Automatic Glassware Washer which combines cleaning with integrated drying system for glassware. It provides efficient, cost-effective option for your laboratory operations. Washing is carried out by means of air heater and drying facilitated by HEPA filter. Available with wide range of chamber capacities along with 12 preset programs and PLC touch screen.

Specifications :

Capacity	120 L
Water consumption/cycle	15 L
Inlet Water Pressure	0.3 to 0.8 MPa
Washing Chamber Size (W×D×H)	600×629×465 mm
Noise	≤ 50 dB
Overall Power Consumption	6 kW
Water Washing Power Consumption	0.75 kW
Water Heating Power Consumption	5 kW
Drying Power Consumption	2.1 kW
Cleaning Racks	1 pcs
Standard Cleaning Racks	36 nozzles std. 1 rack
Power Supply	AC220V, 50Hz
External Size (W×D×H)	960×740×850 mm
Package Size (W×D×H)	1100×950×1050 mm
Gross Weight	145 kg

Features :

• - Self-cleaning program
• - Equipped with efficient pump, optimized spray arm and nozzles
• - High pressure hot air drying system facilitated by independent air heater and HEPA filter
• - Washing temperature upto 99°C and drying by hot air upto 120°C
• - PLC touch screen control system
• - Equipped with corrosion resistance stainless steel material
• - Mounted with a glass window for clear view of washing process
• - Lockable door for safety purpose
• - Preset 12 programs including one customized program

Applications:

Automatic Glassware Washer is used for washing of various glassware like beakers, pipettes, tubes, plates, dishes etc. in microbiology, biotechnology laboratories, research centres and clinical laboratories.
