Automatic Glassware Washer LGW-A21 Catalog

Overview

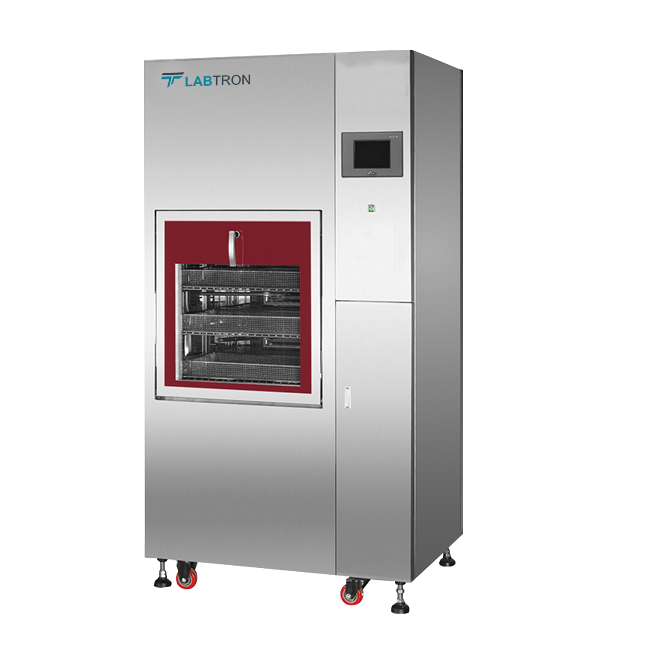

Automatic Glassware Washer LGW-A21 is an automatic medical washing disinfector offers 320 L of capacity with 5 standard cleaning racks. Incorporated rotary nozzles in top, bottom and among shelves with HEPA filter ensures high efficient cleaning and drying. Featuring color LCD display with touch panel and toughened double glass doors for advanced control and to view the inside operation respectively. Designed with stainless steel structure and thermal disinfection with water heating system, provides standard and automatic cleaning and disinfection with customizable standard washing procedure as per user requirements.

Specifications :

Capacity	320 L
Water consumption/cycle	18 L
Inlet water pressure	0.03 to 0.8 MPa
Material	Stainless steel
Noise	<60 dB
Standard cleaning racks	5 layers
HEPA filter	Yes
Thermal disinfection	Yes
Water heating system	Yes ( keep water temperature above 93℃)
Display	Color LCD display with touch panel
Control system	Advanced programmable control system with six standard programs
Overall power consumption	18 kW
Water washing Power consumption	2.8 kW
Water heating Power consumption	15 kW
Drying Power consumption	3.6 kW
Power supply	381 V, 50 Hz
Washer Chamber (W×D×H)	600×629×820 mm
External size (W×D×H)	930×700×1990 mm
Package size (W×D×H)	1100×1000×2350 mm
Gross weight	370 kg

Features :

• - Advanced programmable control system with six standard programs
• - Color LCD display with touch panel
• - High efficient cleaning system with rotary nozzles in top, bottom and among the shelves
• - High efficient drying system with HEPA filter
• - Toughened double glass door to prevent cross contamination
• - Customizable standard washing procedure as per user requirements
• - Stainless steel structure design with standard cleaning racks
• - Thermal disinfection with water heating system to ensure the water temperature to reach the international disinfecting efficiency level

Applications:

Automatic glassware washer provides standard and automatic cleaning and disinfection for most of medical equipment, glass-wares and lab-wares across medical, pharmaceuticals, industries, educational institutes, scientific research institutes etc.
