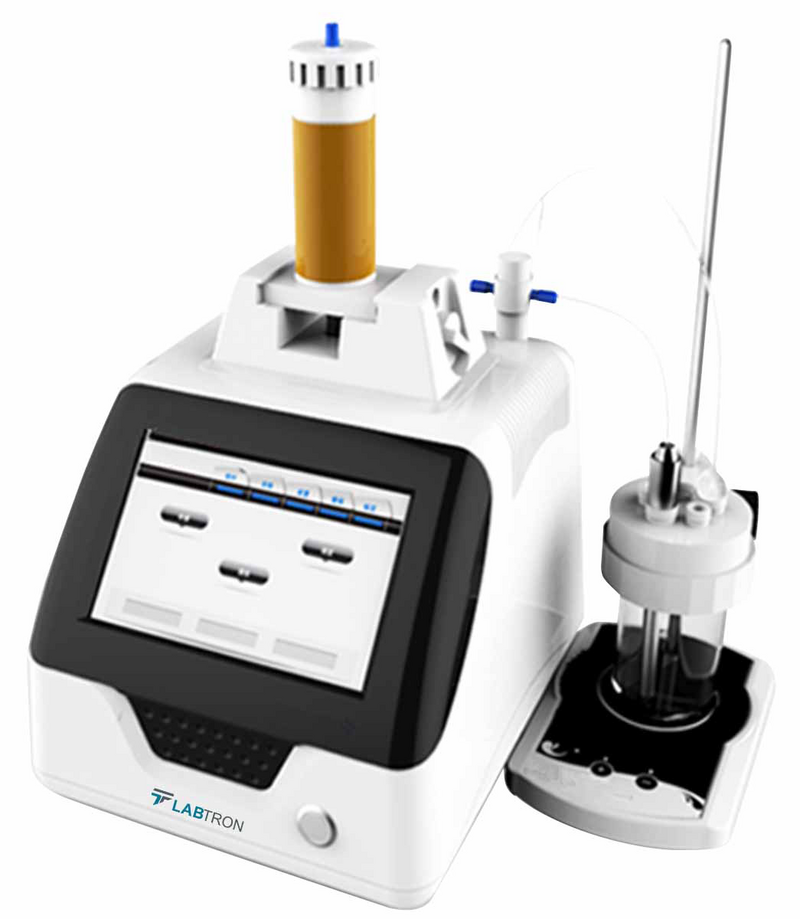

Automatic Potentiometric Titrator LPTT-A10 is an automatic titrator with integrated burette valve design. This modular titrator consist of three units: volume titration device, control device, measurement device. The titration analysis includes acid-base titration, oxidation-reduction titration, non-aqueous, precipitation titration and others.
| Titration mode |
Macro titration, Micro titration, Volume setting titrations, End point titration, Stored titration
|
| Analysis method |
Acid-base Titration, Oxidation-reduction titration, Precipitation titration, Complexometric, Non-aqueous titration
|
| Measurement Range |
| pH value |
0.00 to 14.00 |
| mV value |
-1999.0 to 1999.0 mV |
| Temperature value |
0 to 100 °C |
|
| Resolution |
| pH value |
0.04 pH |
| mV value |
0.1 mV |
| Temperature value |
0.1°C |
|
| Accuracy |
| pH value |
± 0.02 pH |
| mV value |
± 0.2 mV |
| Temperature value |
0.2°C |
|
| Burette Volume Accuracy |
| 15 ml burette |
± 0.025 ml |
| 25 ml burette |
± 0.035 ml |
| Titration analysis parallelism |
0.002 |
| Millivolt accuracy |
≤ 0.2 mV |
|
| Stir |
Coil realize Magnetism stir
|
| Titration cup |
100 ml
|
| Electrodes port type |
mV, pH 1, reference electrode 1, PT1000 electrode 1
|
| Display |
7 inch TFT touch screen display
|
| Communication port |
USB, Stir port, power port, printer port
|
| Learn titration |
Methods can be edited and stored
|
| Power supply |
110 to 240 V, 50/60 Hz
|
| External dimension |
530 × 455 × 280 mm
|
| Net Weight |
10 kg
|
