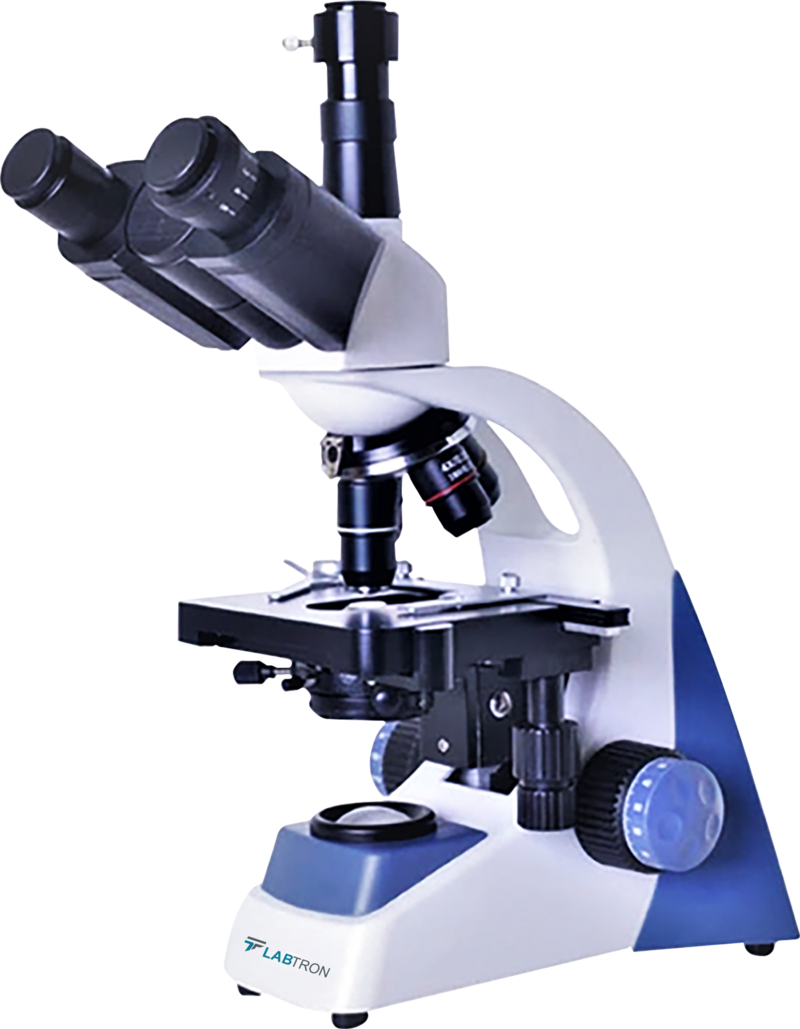

Biological Microscope LBM-E10 Catalog

Overview

Biological Microscope LBM-E10 is a model having compensation free trinocular head inclined at 30° angle. Features infinity plan achromatic optical system, double layer mechanical stage, built-in illumination system, quadruple nosepiece etc. to obtain high quality images of specimen. It is widely used in universities and research institutes

Specifications :

Principle of Optics	Differential Interference Contrast Microscope
Viewing head	Compensation Free Trinocular Head inclined at 30°
Nosepiece	Ball Beating Quadruple Nosepiece
Eyepiece	WF10X/18 mm
Objective	Infinite Plan Achromatic 4X,10X,40X(S), 100X(S, Oil)
Stage	Double Layer Mechanical Stage Size: 135×140 mm
Condenser	condenser with Iris Diaphragm & filter Rack & pinion adjustable NA 1.25
Illumination	Build-in Illumination, Halogen lamp 6V/20 W
Power supply	AC 110/220 V ± 10%, 50/60 Hz
Packaging Material	Cartoon with foam
Package dimension	250×360×460 mm
Gross weight	8 kg

Features :

• - Infinity Plan achromatic optical system for sharp images
• - 18mm wide field view
• - Quadruple nosepiece
• - Double Layer mechanical stage
• - Condenser with Iris diaphragm and filter
• - Adjustable rack and pinion
• - Built-in illumination
• - Accessories like photo and video attachment, dark field condenser, phase contrast kit etc. can be made available

Applications:

It is used to study microscopic life forms, cells, tissues etc. in research labs, universities and colleges.
