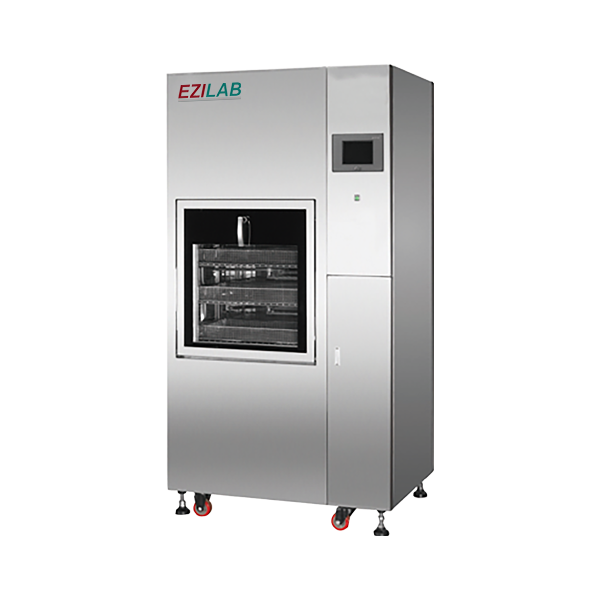

Automatic Glassware Washer EZL-GW213 Catalog

Overview

Automatic Glassware Washer EZL-GW211 is designed to wash, dry, and disinfect a wide range of medical lab ware. With a capacity of 220 liters and 15 liter water consumption/cycle, the washer can reach a maximum wash temperature of 93°C where water is pumped through the spindles to reach the glassware. There are 99 personalized programs available, each with a wide range of capabilities. Users have complete control over wash parameters and washer settings due to LCD color touch screen display.

Specifications :

Capacity	420 L
Water Consumption/Cycle	25 L
Inlet Water Pressure	0.3 - 1.0 Mpa
Noise	< 60 dB
Standard Cleaning Racks	5 layers
Power Consumption- Water Washing	25 KW
Power Consumption- Water Heating	1.5 KW
Power Consumption- Drying	3.6 KW
Material	Stainless steel
Overall Power Consumption	1.8 KW
Power Supply	380V, 50 Hz
Washer Chamber Size (W×D×H)	688×700×703 mm
External Size (W×D×H)	1100×900×2165 mm
Package Size (W×D×H)	1270×1025×2340 mm
Gross Weight	400 Kg

Features :

• - Toughened glass doors to prevent cross infection
• - LCD color touch screen with advanced programmable control system with six standard programs
• - High efficient cleaning system
• - High efficient drying system with HEPA filter
• - Slick design, user friendly ergonomic machine
• - Stainless steel door with glass viewing window
• - Easy and safe loading/unloading of the glassware
• - With rotary nozzles at the top, bottom and between the shelves to ensure that the spray liquid can fully reach the system surface
• - Self-cleaning program
• - All processes from wash to rinse are fully automatic

Applications:

Automatic Glassware Washer device provides standard and automatic cleaning and disinfection for most of the medical equipment. This device can be used to clean large Duran bottles, beakers, pipettes, tubes, plates, dishes, etc.
