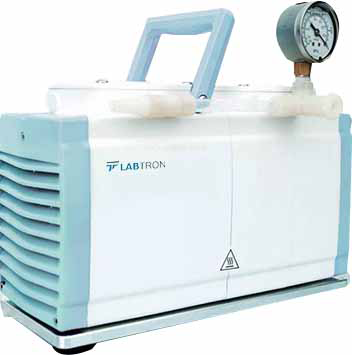

Diaphragm Vacuum Pump LDVP-A15 Catalog

Overview

Diaphragm Vacuum Pump LDVP-A15 with nitrile (NBR) pump material is equipped with automatic cooling exhaust system to ensure continuous 24 hours operation & deliver contamination-free air, gases or vapours. Its high quality classical axle tree design enables steady running with low noise and high operating efficiency. It can operate independently or as part of a modular system and require minimal maintenance.

Specifications :

Pumping Speed	60 L/min
Ultimate Pressure	≥ 0.08 MPa
Vacuum	200 mbar
Material of diaphragm pump	Nitrile Rubber (NBR)
Power	160 W
Inlet	φ 6 mm
Outlet	φ 6 mm
Temp. of Body	< 55 °C
Ambient Temp.	7 to 40°C
Pump Head	2
Noise Level	< 60 dB
Weight	9 kg
Dimension	300 × 160 × 235 mm
Power Supply	220 V, 50 Hz

Features :

• - Eco-friendly oil-free displacement pumping
• - Air exchange bin with filtering system for clean flow of air
• - Self-cooling air draft system
• - High quality classical axle tree design
• - Frictionless operating system
• - Nitrile rubber (NBR) diaphragm pump for organic solvents applications
• - User-friendly operations

Applications:

Used for vacuum absorption, filtration and vacuum distillation, vacuum drying to extract, to transfer and to deliver contamination free air and gases across Life science , pharmacy, chemistry, food & packaging industry.
