Dispensing peristaltic pump LDPP-A11 Catalog

Overview

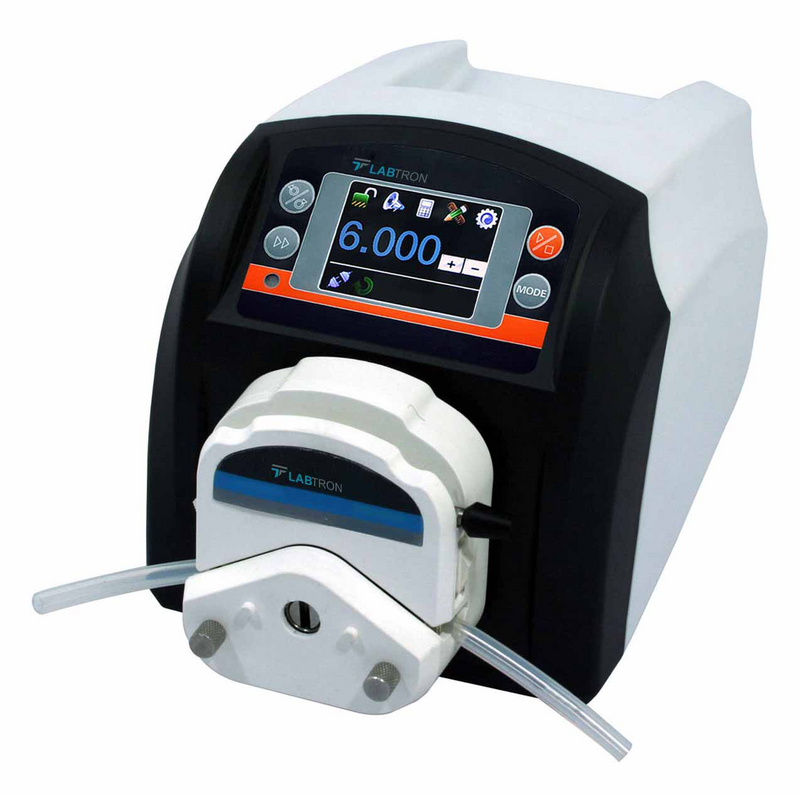

Dispensing peristaltic pump LDPP-A11 is equipped with a touch screen controller that allows monitoring of parameters and change of speed. Equipped with a flow rate of 0.006 to 1600 mL/min and 0.006 ~ 2900 mL/min and advanced features such as flow rate calibration and anti-drip function. Four operational modes available for easy functioning. Intelligent cooling fan control helps in minimizing the work noise

Specifications :

Flow Range	0.006 ~ 2900 mL/min
Flow Accuracy	0.002
Speed Range	0.1 ~ 600 rpm
No of channel	1
Speed Resolution	0.1 rpm
Ambient Temperature	0 ~ 40 °C
Relative Humidity	< 80 %
IP grade	IP 31
Power supply	AC 220 V ± 10 % , 50 Hz / 60 Hz
Power Consumption	< 50 W
Dimensions ( L x W x H )	257 x 182 x 198 mm
Weight	5.5 kg

Features :

• - Operational modes : Volume Dispense, Time Dispense, Copy Dispense and Flow Mode
• - LCD display for monitoring parameters
• - Anti-drip function ensuring dispense accuracy
• - Speed resolution : 0.1 rpm
• - Adjustable rotating speed
• - Intelligent temperature control minimizing working noise
• - Reversible operation allowing pumping in both directions
• - Multi channels with interchangeable pump heads for varied applications
• - Easy liquid auto dispension by time or volume
• - Internal double layer isolation
• - Dust and moisture proof circuit board
• - Optional remote infrared control
• - Robust and protected with ABS plastic housing
• - Low noise operation

Applications:
