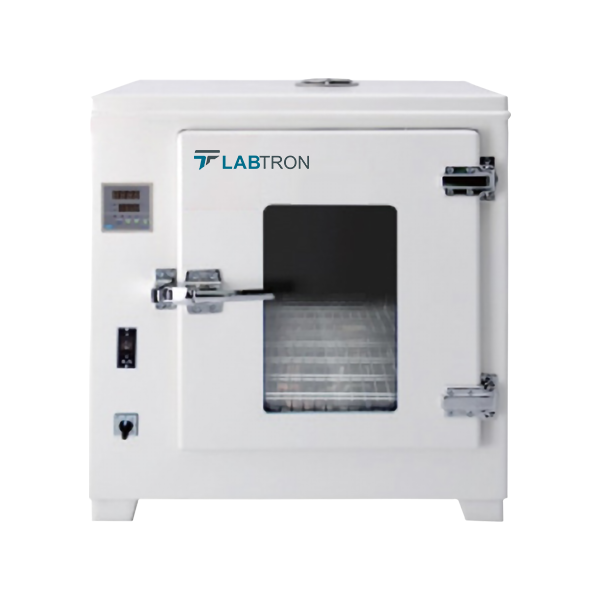

Forced Air Drying Oven LFDO-A20 Catalog

Overview

Forced Air Drying Oven LFDO-A20 is a PID microprocessor intelligent temperature-controlled unit with 600 L of capacity and RT+10 to 200/300°C of temperature range. With over-temperature protection and precise temperature control, features LED display with 0.1°C precision and 1 to 9999 min of time range. Designed with cold-rolled steel with anti-bacteria powder coated housing, stainless steel interior with round angle structure and adjustable 3 shelves, has door with glass observation window for see-through view.

Specifications :

Capacity	600 L
Temperature range	RT+10 to 200/300°C
Temperature precision	0.1°C
Temperature fluctuation	±1°C
Ambient temperature	15 to 40°C
Time range	11 to 9999 min
Display	LED
Housing	Cold-rolled steel with anti-bacteria powder coating
Interior	Stainless steel interior with round angle structure
Shelves	3 pc
Power supply	380 V 50/60 Hz
Power	6000 W
Internal dimension (W×D×H)	800×800×1000 mm
External dimension (W×D×H)	1157×975×1290 mm
Packaging dimension (W×D×H)	1230×1050×1420 mm
Gross weight	260 kg

Features :

• - PID microprocessor intelligent temperature-controlled unit, automatic process control
• - 600 L capacity with RT+10 to 200/300°C of temperature range
• - Over-temperature protection and precise temperature control
• - LED display with 0.1°C precision and 1 to 9999 min of time range
• - Cold-rolled steel with anti-bacteria powder coated housing, long life-span
• - Stainless steel interior with round angle structure, easy-to-clean
• - Adjustable shelves, efficient and organized storage of samples
• - Door with glass observation window for see-through view
• - High-efficient, stable and reliable unit for evaporation, sterilization etc.

Applications:

Forced Air Drying Oven is used for uniform temperature and precise temperature control for heating, baking, evaporating, sterilizing, temperature testing etc. across clinical, forensic, electronics, material processing, research laboratories etc.
