Muffle Furnace EZL-MF301 Catalog

Overview

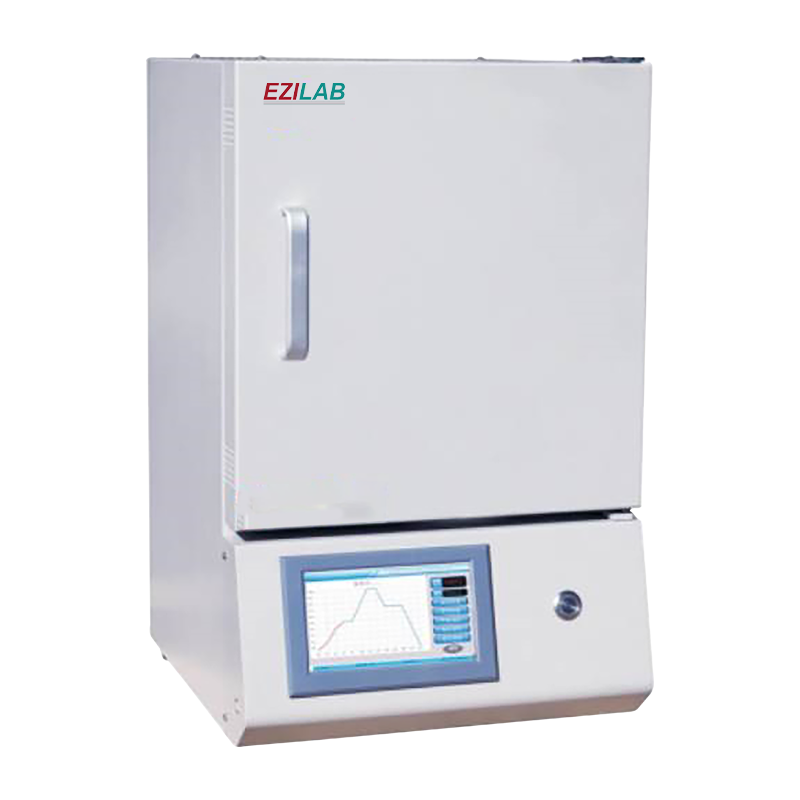

The external body of the Muffle Furnace EZL-MF301 is kept cool at high temperatures and provides outstanding stability. The furnace has a top vent outlet for natural venting or gas purging, as well as light weight ceramic fiber insulation for rapid thermal cycling and electric heating. The furnace has a capacity of 1.7 L and operates at 1700°C with a digital PID controller for precise temperature control, making the device simple to use. It includes a unique safety mechanism that prevents it from overheating and shorting out.

Specifications :

Capacity	1.7 L
Maximum Working Temperature	1700°C (<1 hour)
Continuous Working Temperature	800 to 1650°C
Heating Rate	Maximum Heating Rate: 0 to 20°C/min
Temperature Accuracy	±1°C
Thermocouple	B type
Heating Element	High purity MoSi2 heating element
Temperature Control	PID automatic control
Furnace Material	Double layer steel casing
Display	7” colour touch screen
Rated Power	1.8 Kw
Working Voltage	AC 208V to 240V, 50Hz
Chamber Dimension (W×D×H)	120×120×120 mm
Overall Dimension (W×D×H)	390×630×540 mm
Net Weight	80 kg

Features :

• - Ceramic fiber furnace chamber to ensure fast heating rate and save power
• - 51 programmable segments for precise control
• - Intelligent sensor alarm function
• - Digital PID controller
• - Intuitive and easy to use operating menu
• - Easy to open door handles
• - Current temperature and setting temperature are displayed separately on control panel
• - Highly efficient fan motor ensures uniform air circulation
• - Excellent temperature accuracy
• - Simple to use and maintain
• - Over-temperature limit function
• - Less and low noise operation with gentle air currents
• - Vent hole on top is a perfect solution for waste gas during material sintering

Applications:

These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.
