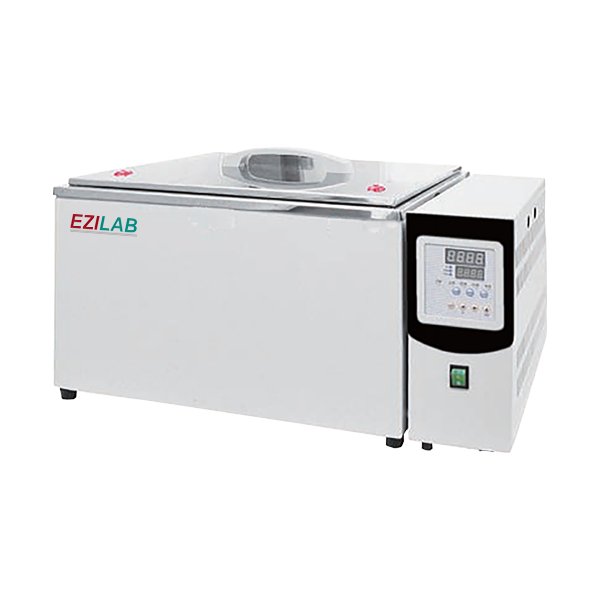

Shaking Water Bath EZL-SB161 Catalog

Overview

Shaking Water Bath EZL-SB161 with Reciprocal Shaking is designed for a wide range of temperature controlled shaking protocols. It utilizes a belt-less motor drive system, with the addition of precision temperature control up to 98°C. The seamless, stainless steel chamber has a 30-liters capacity and includes a spring-loaded platform for securing flasks, tubes etc. It operates within a 50 to 200 rpm speed range with a 15 to 20 mm stroke length. A removable lid is also included to reduce energy waste, prevent splashing and divert condensation away from samples.

Specifications :

Capacity	30 Liters
Temperature range	Ambient +5°C to 98°C
Temperature Accuracy	±0.1°C at 37°
Speed Range	50 to 200 rpm
Stroke Length	15 to 20 mm
Timer Range	99 Hr 59 min
Temperature Sensor	PT-100Ω
Shaking Motion	Reciprocal
Standard Plate	Spring rack
Temperature Controller	PID controller
Bath Internal Material	Stainless steel
External Material	Steel plate with powder coating
Heater	Stainless steel
Safety Device	Over current circuit breaker
Motor	DC Motor
Power Heater Capacity	2 KW
Bath Dimension (L×D×H)	500×300×250 mm
External Dimension (L×D×H)	690×340×340 mm

Features :

• - Reciprocal shaking motion
• - PID controller for easy temperature selection
• - Rapid heat up and excellent stability ±0.1°C
• - Programmable timer up to 99 hrs 59 min - Bath stops heating when timed operation is completed
• - Adjustable speed control from 50 to 200 rpm
• - Convenient drain port with quick disconnect allows for easy cleaning of the bath
• - Included spring plate accepts tubes, bottles and flasks
• - Compact design conserves bench space
• - Easy to use controls allow the user to digitally select and monitor time, temperature and shaking speed
• - Detachable lid is included to reduce energy waste & prevent splashing of samples
• - Utilizes a DC power motor
• - Shaking speed is adjustable and electronic feedback control ensures accurately maintained speed
• - Requires no special fitting and use strong magnets
• - Low level water sensor causes a warning to flash on the display to indicate warning

Applications:

It is widely used in de-staining of gels, incubation of cells or bacteria cultures, wash processes in various laboratories, research institutions, pharmaceutical industries, life science and chemical analysis.
