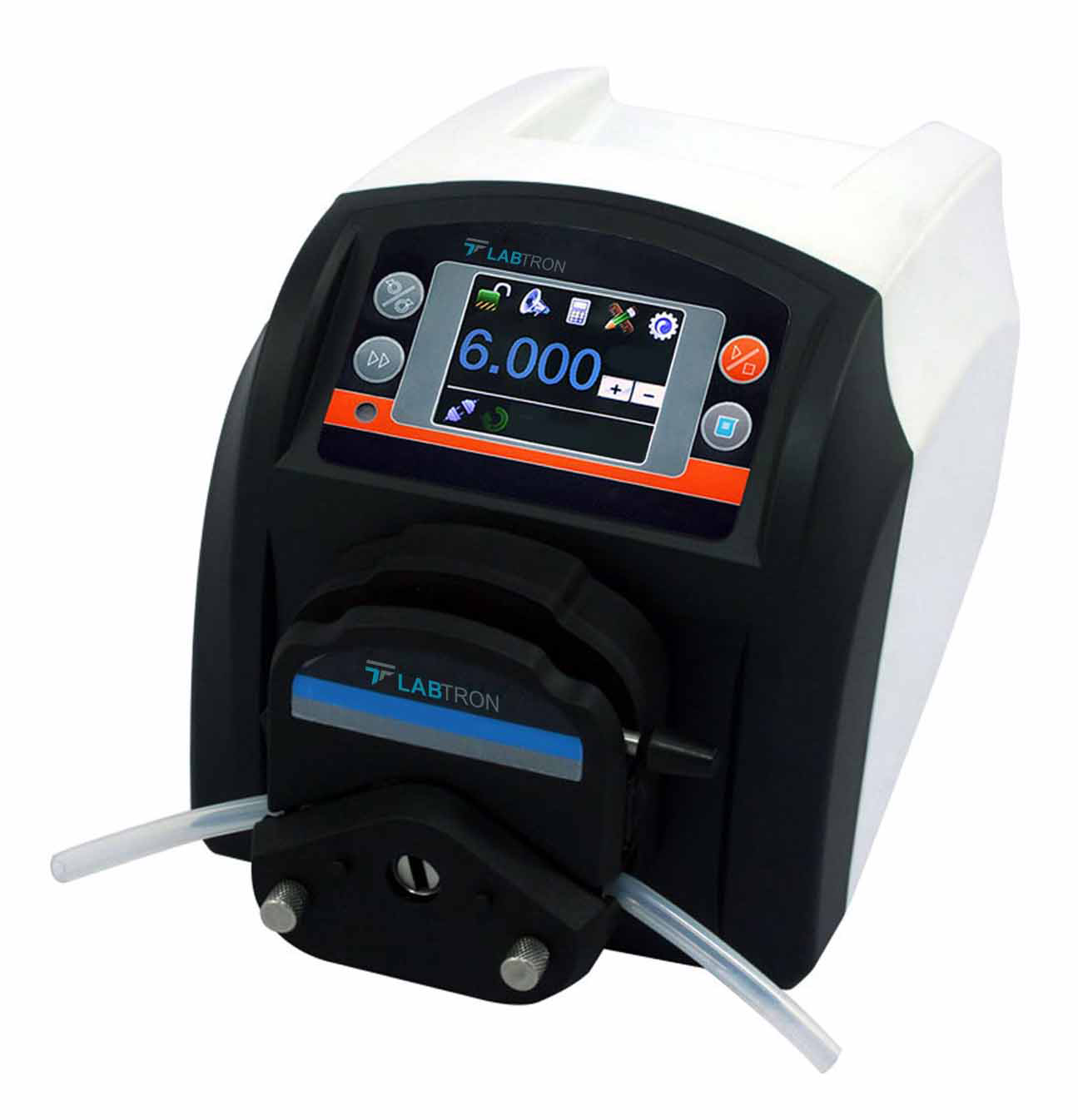

Intelligent flow peristaltic pump LIFP-A11 Catalog

Overview

Intelligent flow peristaltic pump LIFP-A11 is equipped with a touch screen controller that allows monitoring of parameters and change of speed. Equipped with advanced features such as flow rate calibration and anti-drip function. Easy dispense mode to dispense the recorded volume by one touch DISPENSE key. Intelligent cooling fan control helps in minimizing the work noise

Specifications :

Flow Range	0.006 ~ 2900 mL/min
Flow Accuracy	0.002
Speed Range	0.1 ~ 600 rpm
No of channel	1
Speed Resolution	0.1 rpm
Ambient Temperature	0 ~ 40 °C
Relative Humidity	< 80 %
IP grade	IP 31
Power supply	AC 220 V ± 10 % , 50 Hz / 60 Hz
Power Consumption	< 50 W
Dimensions ( L x W x H )	257 x 198 x 182 mm
Weight	5.5 kg

Features :

• - LCD display for monitoring parameters
• - Anti-drip function ensuring dispense accuracy
• - Speed resolution : 0.1 rpm
• - Adjustable rotating speed
• - Intelligent temperature control minimizing working noise
• - Reversible operation allowing pumping in both directions
• - Multi channels with interchangeable pump heads for varied applications
• - Easy liquid auto dispension by time or volume
• - Internal double layer isolation
• - Dust and moisture proof circuit board
• - Optional remote infrared control
• - Robust and protected with ABS plastic housing
• - Low noise operation

Applications:
