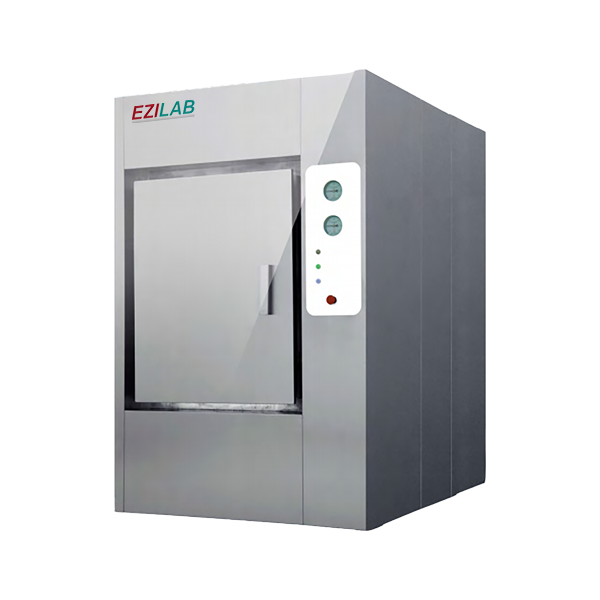

Pulse Vacuum Steam Sterilizer EZL-PS91 Catalog

Overview

Pulse Vacuum Steam Sterilizer EZL-PS91 is a high-temperature, high-pressure sterilizer that uses saturated steam as a sterilant. The 360-liter volume unit requires 0.15 – 0.3Mpa of water and 0.3 – 0.6Mpa of steam supply. The sterilizer has a monitoring port for connecting to various CSSD traceability systems and is made of high-quality stainless steel for the chamber and jacket. It employs an automatic PLC touch screen control system, with cycle status and hardware parameters monitored in real time.

Specifications :

Volume	360 L
Water Supply	0.15 – 0.3 Mpa
Steam Supply	0.3 – 0.6 Mpa
Power	24 W
Shape Dimension (L×W×H)	1345×1285×1840 mm
Chamber Dimension (L×W×H)	982×610×610 mm
Voltage	AC 380V 50 Hz
Weight	1350 Kg

Features :

• - Imported vacuum pump to ensure stable performance
• - Liquid level balancing and cooling system to make sure the vacuum pump is always at its best working condition
• - Chamber and jacket adopt high-quality stainless-steel materializer
• - PLC touch screen for fully automatic control
• - One-key smart operation for the whole process
• - Cycle status and hardware parameters can be monitored in real time
• - Remote control operation is available
• - Supper-heat keeping measures are applied to the sterilizer to reduce energy consumption and work load of room air conditioning device
• - Sterilant is effectively cooled down to reduce heat pollution

Applications:

It is frequently used to sterilize medical dressings, biological products, instruments and utensils, sterile suits, medical wastes, fluids, culture media, and other items in medical institutes, pharmaceutical firms, biological engineering, and labs.
