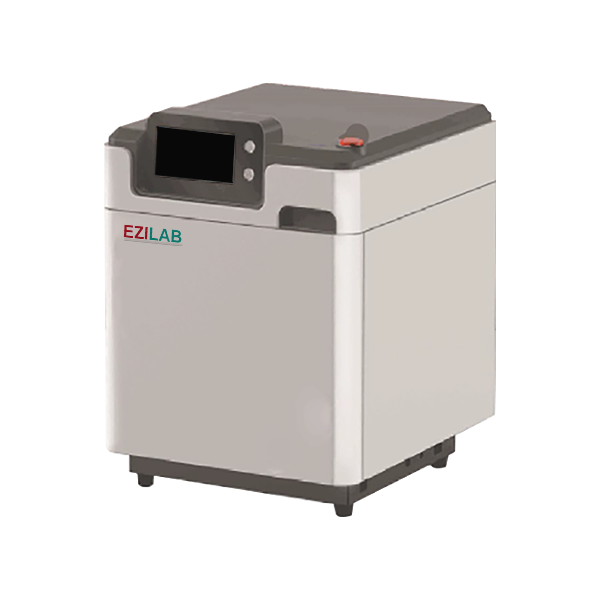

Microwave Digester EZL-MD93 Catalog

Overview

Microwave Digester EZL-MD93 is a flexible platform that provides an unmatched streamlined digestion workflow simultaneously covering the whole range of samples from routine to high-end applications. It has an ability to digest up to 10 samples meeting different digestion requirements. It can effectively improve sample digestion by using precise temperature/pressure control and high-efficiency with dual magnetron non-pulse microwave heating technology. The pressure resistance can reach 15MPa and temperature resistance of 400°C, so as to ensure the operator’s safety under extreme conditions.

Specifications :

Vessels	10
Vessel Volume	100 ml
Temperature Range	50°C to 400°C
Temperature Accuracy	T0.1°C
Display Accuracy	0.1°C
Pressure Control Range	0 to 15 MPa
Pressure Accuracy	±0.01 MPa
Microwave Tank	317 L stainless steel tank
Microwave Leakage	<5mw/cm²
Microwave Power	0 to 10000 W (adjustable)
Rotation	One direction 360° continuous rotation
Vessel Material	TFM
Protection Vessel Material	Peek + Glass Fiber
Air Exhaust	Erosion-proof air blower
Display	7 inch touch screen
Power	AC 220V+10%, 10A, 50/60Hz
Dimension (W×D×H)	560×490×630 mm

Features :

• - Up to 10 vessels to meet different digestion requirements
• - Vertical microwave design for even distribution of microwaves
• - Real time monitoring for both temperature and pressure of each vessel
• - Contactless monitoring with no burst disk design saves consumable and maintenance cost
• - Touch screen with user-friendly interface for easy operation
• - CFRP with high strength ensures impact resistance
• - Pre-installed international standard methods, while users can also edit, save modify and delete own method
• - Stainless steel tank with Teflon coating avoids erosion and ensures fast cooling
• - Special magnetron design which carries out high microwave leakage standards
• - Easy to use vessels

Applications:

Microwave digestion is widely used in many fields and is a commonly used technology in pre-treatment process of soil, sediments and solid waste samples, trace heavy metal elements in food and medicine, digestion needs of clinical samples, scientific research and metallurgy.
