Rotary Evaporator EZL-RE26 Catalog

Overview

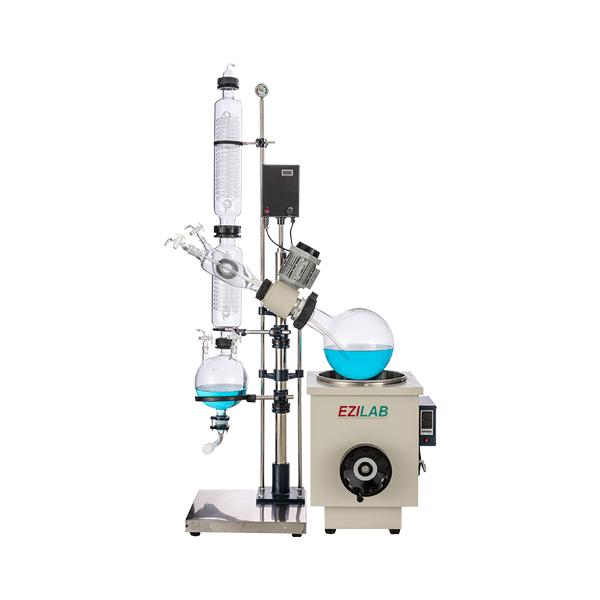

Rotary Evaporator EZL-RE26 is designed and engineered for ease of use while maintaining the highest level of safety. It operates at 110 rpm and allows for one-handed manual lift handling for precise positioning of glassware by using either water or oil. The unique 20 L bath design heats up quickly, allowing for faster experiments. Bath can reach temperatures of up to 400°C and is designed to be user-friendly while maintaining the highest level of safety. The transparent vertical condenser's small footprint makes efficient use of the cooling surface. This piece of equipment includes a digital display for monitoring and controlling rotation speed parameters.

Specifications :

Rotary Bottle	20 L
Collecting Bottle	10 L
Rotary Speed	0 to 110 rpm
Evaporating Speed	60 ml/min
Achievable Vacuum	0.098 Mpa
Bath Size	450×250 mm
Bottom Plate Size	534×504 mm
Elevating Stroke	180 mm
Temperature Range	0 to 400°C
Temperature Accuracy	±1°C
Display	Digital display
Speed Regulation	Electronic step less speed regulation
Elevating function	Manual elevating
Sealing	Double sealing with Teflon (PTFE)
Rotary Motor Power	120 W
Heating Power	5 Kw
Power Supply	220V, 50/60Hz
Dimension (L×W×H)	1170×540×2200 mm
Gross Weight	135 Kg

Features :

• - Double sealing with Teflon and Fluorous rubber to ensure high vacuum degree
• - Single handed manual lift offers precise positioning of glassware
• - Borosilicate glass, which is resistant to high temperatures and corrosion
• - Continuous feeding is convenient for users
• - Vacuum pressure gauge displays real time vacuum degree
• - Up-right double layer serpentine coil condenser to ensure high recovery rate
• - Stainless steel and aluminum alloy main body bracket
• - Easy and smooth operation of lifting and moving
• - Separation of bath and mainframe makes configuration flexible
• - High rated condenser with exceptional cooling properties
• - Heats up quickly because of optimized bath volumes
• - Easy and jolt-free raising and lowering of rotary evaporator
• - Adjustable final position recognition to protect operator and sample against breaking

Applications:

It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
