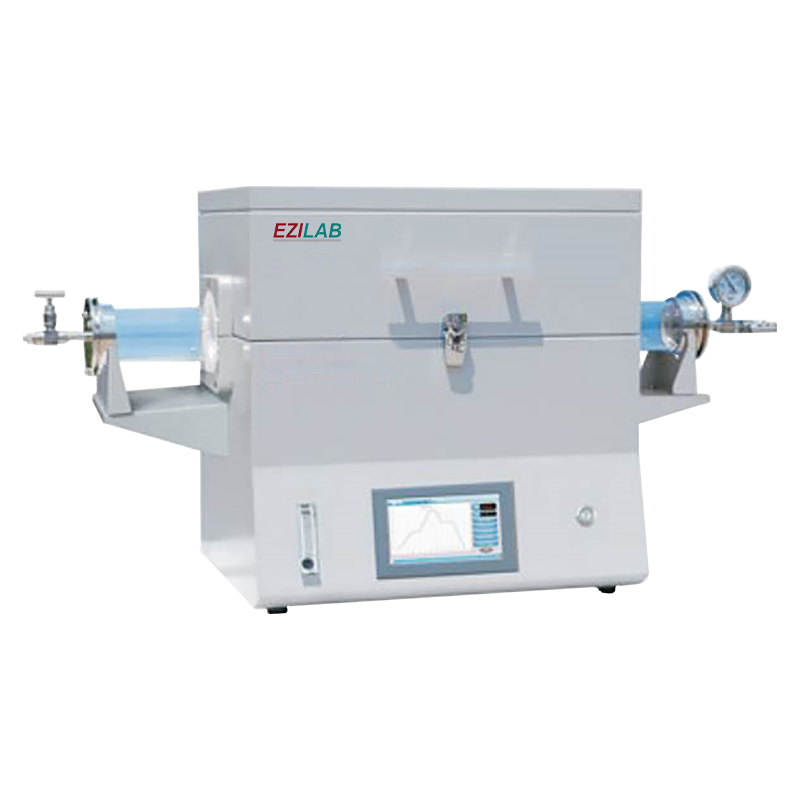

Tube Furnace EZL-TF101 Catalog

Overview

The Tube Furnace EZL-TF101 uses high-quality heating elements and a novel thermal insulation design to deliver best-in-class performance while lowering case temperatures and lowering power consumption. Single zone tube furnace has high level of flexibility to various applications operating with a temperature range of 1200°C offering hinge design, which easily allows you to change the tube.

Specifications :

Tube Size	50 × 1000 mm
Maximum Temperature	1200°C
Working Temperature	≤1150°C
Temperature Accuracy	±1°C
Heating Rate	≤20°C/min
Heating Zone	Single
Length of Heating Zone	440 mm
Constant Zone	260 mm
Gas Tightness	4.03 × 10-3 Pa
Thermocouple	K type
Heating Element	Resistance Wire
Chamber Material	Alumina fiber refraction insulation
Control Mode	PID control
Operating Interface	Graphical interface
Working Voltage	AC 208-240V 50/60Hz

Features :

• - Intelligent sensor alarm function
• - Durable molded ceramic fiber insulation
• - Embedded heating element
• - Exhausted gas outlet port
• - Digital PID program controller
• - Auto-tuning function
• - Intuitive and easy to use operating menu
• - Excellent temperature accuracy
• - Simple to use and maintain
• - Over-temperature limit function
• - Less and low noise operation with gentle air currents

Applications:

These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.
