Tube Furnace EZL-TF102 Catalog

Overview

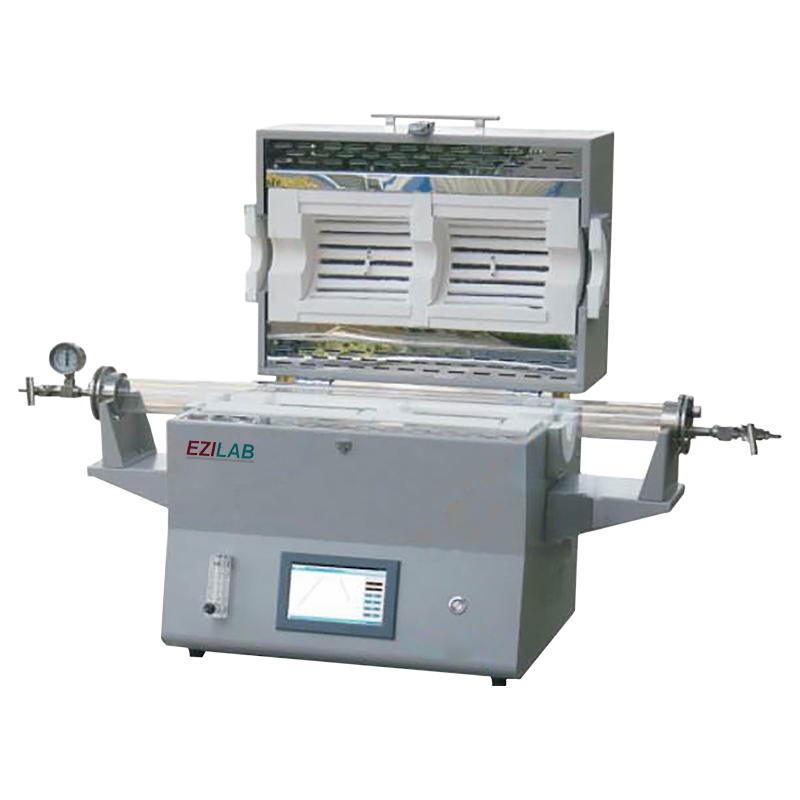

Tube Furnace EZL-TF102 delivers best-in-class performance while lowering case temperatures and cutting power consumption thanks to high-quality heating elements and a revolutionary thermal insulation design. A double zone tube furnace with a temperature range of 1200°C and a hinge design with vacuum sealing flange allows you to simply change the tube and has a high level of adaptability for varied applications. It is also equipped with a K type thermocouple and high purity quartz material of 1000 mm length.

Specifications :

Tube Size	60 × 1000 mm
Maximum Temperature	1200°C
Working Temperature	≤1150°C
Temperature Accuracy	±1°C
Heating Rate	≤20°C/min
Heating Zone	Dual
Length of Heating Zone	440 mm
Constant Zone	260 mm
Gas Tightness	4.03 × 10-3 Pa
Tube Material	Quartz, 1000 mm length
Sealing Mode	Vacuum Flange
Thermocouple	K type
Heating Element	Alloy heating wire
Chamber Material	Alumina fiber refraction insulation
Control Mode	PID control
Operating Interface	Graphical interface
Working Voltage	AC 208-240V 50/60Hz
Chamber Dimension (W×D×H)	60×200×200 mm

Features :

• - Intelligent sensor alarm function
• - Durable molded ceramic fiber insulation
• - Embedded heating element
• - Exhausted gas outlet port
• - Digital PID program controller
• - Auto-tuning function
• - Intuitive and easy to use operating menu
• - Excellent temperature accuracy
• - Simple to use and maintain
• - Over-temperature limit function
• - Less and low noise operation with gentle air currents

Applications:

These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.
