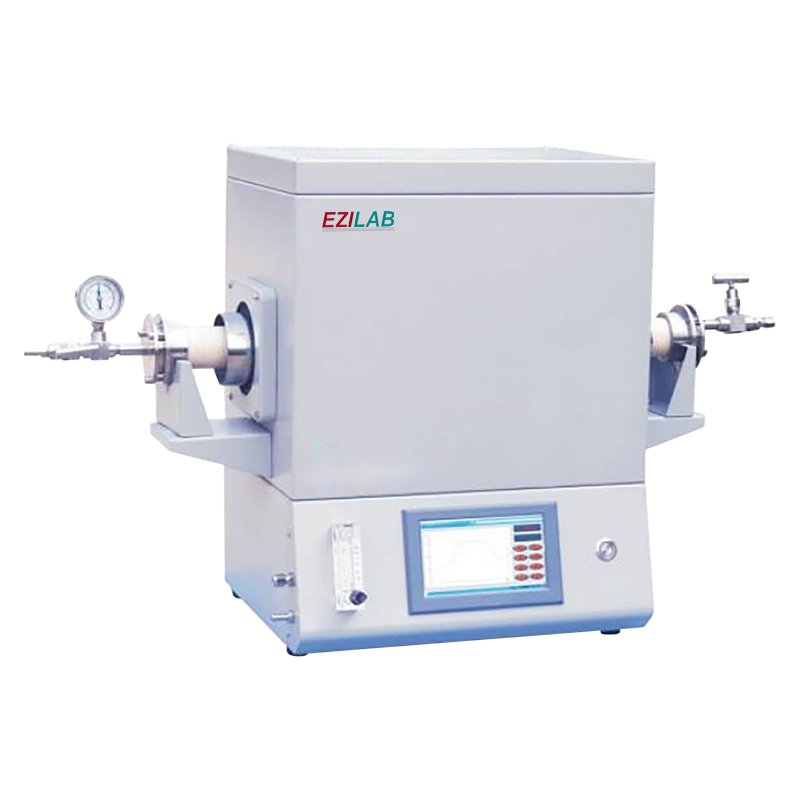

Tube Furnace EZL-TF201 Catalog

Overview

Tube Furnace EZL-TF201 delivers best-in-class performance while lowering case temperatures and cutting power consumption thanks to high-quality heating elements and a revolutionary thermal insulation design. A single zone tube furnace with a temperature range of 1500°C and a hinge design with vacuum sealing flange allows you to simply change the tube and has a high level of adaptability for varied applications. It is also equipped with a S type thermocouple and high purity quartz material of 700 mm length.

Specifications :

Tube Size	50×700 mm
Maximum Temperature	1500°C
Working Temperature	≤1450°C
Temperature Accuracy	±1°C
Heating Rate	0 to 20°C/min
Heating Zone	Single zone
Length of Heating Zone	180 mm
Gas Tightness	4.03×10-3 Pa
Flow Control	0 to 60ml/min
Tube Material	Quartz
Sealing Mode	Vacuum Flange
Thermocouple	S type
Pre-setting curve	15 pre-setting curves
Heating Element	SiC rod
Chamber Material	Alumina fiber refraction insulation
Control Mode	PID control
Operating Interface	Graphical interface
Working Voltage	AC 208-240V 50/60Hz
Dimensions (W×D×H)	850×420×680 mm
Net Weight	30 kg

Features :

• - Intelligent sensor alarm function
• - 7-inch color touch screen
• - Storage up to 15 sintering curves
• - Durable molded fiber insulation
• - Vacuum sealing flange
• - Embedded heating element
• - Exhausted gas outlet port
• - Digital PID program controller
• - Auto-tuning function
• - Intuitive and easy to use operating menu
• - Excellent temperature accuracy
• - Simple to use and maintain
• - Over-temperature limit function
• - Less and low noise operation with gentle air currents

Applications:

These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.
