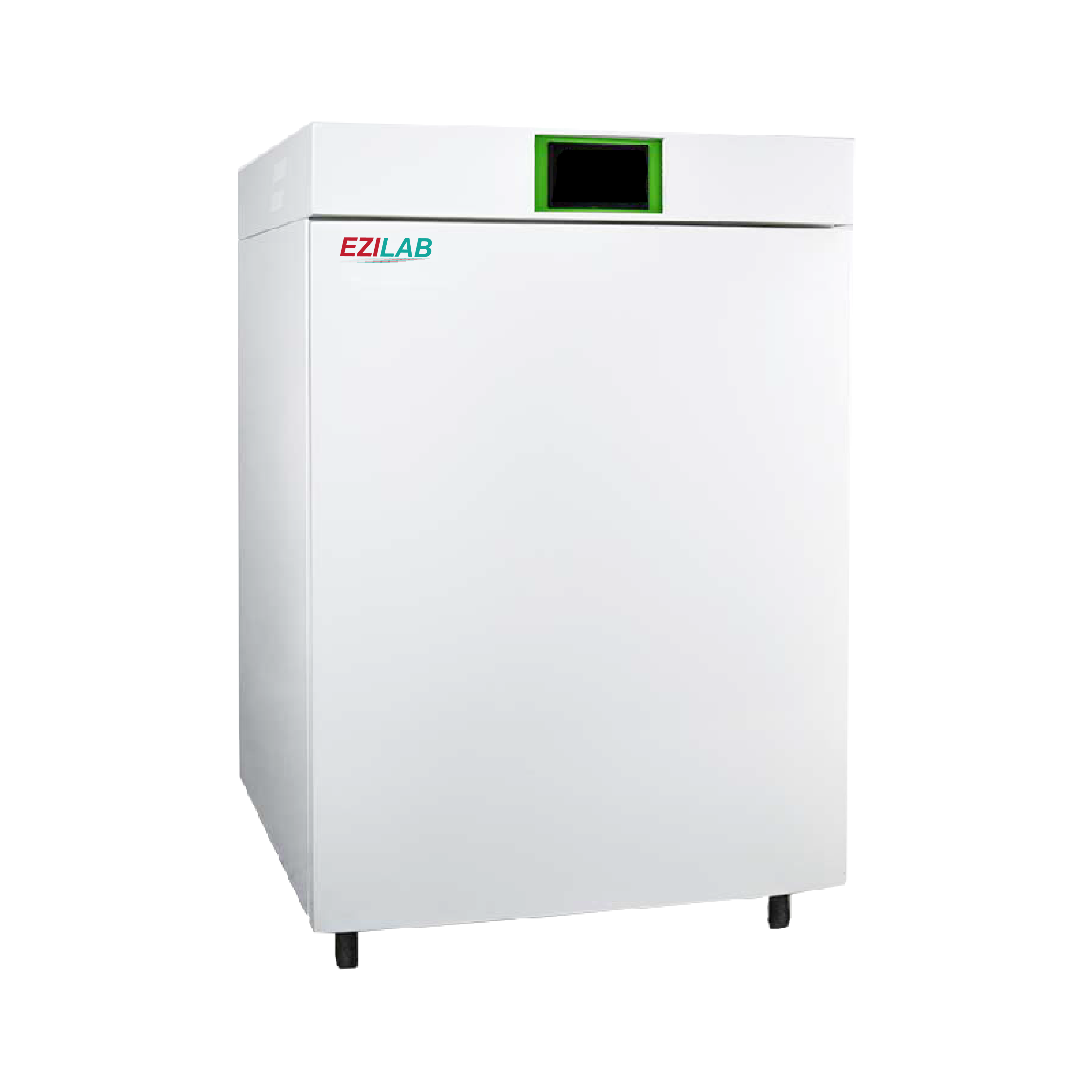

Direct Heat CO2 Incubator EZL-CI85 Catalog

Overview

Direct Heat CO2 Incubator EZL-CI85 is designed to provide precise, dependable, and tight uniformity while minimizing contamination. It has an 165-liter chamber volume and employs direct heating elements that surround the growth chamber to maintain a set point temperature of RT+3°C to 60°C, as well as a dual wave infrared (IR) sensor to control CO2 gas levels. It has a HEPA filtration system that achieves complete contamination control and reliable long-term performance.

Specifications :

Chamber Volume	165 L
Temperature Range	RT +3 to 60°C
Display Resolution	0.1°C
Temperature Stability	≤ ±0.2°C
Temperature Uniformity	≤ ±0.3°C
CO2 Range	0 to 20%
CO2 Control Resolution	±0.1%
Humidity Method	Natural Vaporization
Power Supply	AC 220V, 50 Hz
Power Rating	900 W
Chamber Dimension (W×D×H)	50×51×65 cm
Exterior Dimension (W×D×H)	65×73×103 cm
Net Weight	83 kg
Gross Weight	120 kg

Features :

• - There are water jacket and air jacket structures available
• - Polished stainless-steel chamber with air duct
• - Forced convection is created by a fan
• - When the door is opened, the fan is automatically turned off to prevent pollution
• - Large LCD screen and PID controller design
• - A PID microprocessor is used to control temperature and air flow
• - The air jacket is outfitted with two probes for controlling the temperature of the door and the main body
• - The LCD indicator switch is flexible
• - Alarm function for overheating, lack of water, over concentration, slow concentration rising, ensuring the equipment's safe operation
• - Sterile air filtration by UV light system
• - Natural evaporation is used to humidify the air
• - Use a gilded infrared probe to detect CO2
• - The sensor has a life expectancy of up to 15 years
• - It has a leak detection system and an auxiliary thermostat
• - CO2 pressure releasing valve
• - Wireless alarm system
• - HEPA filter system
• - Automatic humidification system
• - 90℃ High temperature sterilization

Applications:

These type of incubators are ideal for roller bottle apparatus and high-volume tissue culture applications such as cell harvesting, sensitive tissue, and cell culture. These incubators offer contamination control and unique temperature uniformity for even the most demanding incubations.
