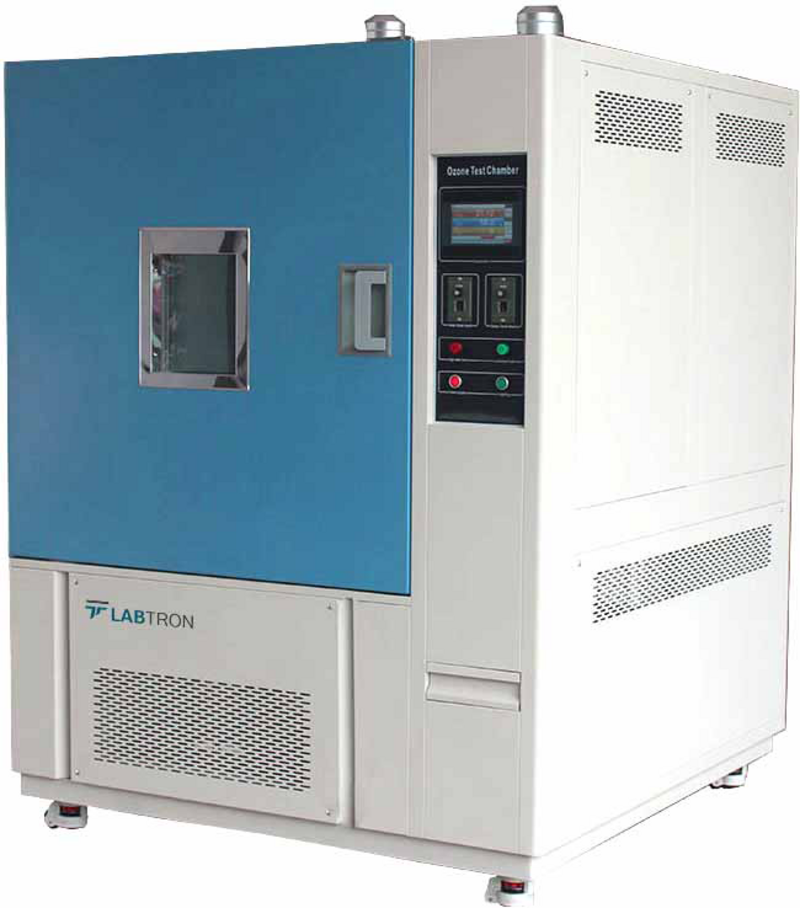

Ozone Test Chamber LOC-A12 Catalog

Overview

This device is specifically designed to detect the concentration of ozone with the help of ozone detector. Along with low maintenance and noiseless generator this machine has a well-built corrosion resistant body.

Specifications :

Diameter of holder (mm)	600
Length of each side (mm)	220
Temperature range	0℃ ~ 100℃
Humidity range	30 % - 98 % R.H
Temperature fluctuation	± 0.5 ℃
Speed rate for cooling	Ambient ~ 0 ℃ within 20 min
Timing range	0 ~ 999 hours
Ozone concentration	1 ~ 1000PPHM
Sample holder rotate speed	0 ~ 10 r/min (adjustable)
Clamps tensile stretch	5 % ~ 35 %
Max. ozone concentration	120 g O3/m³
Ozone output	3.5 g O3/h (oxygen input, flow rate 100L/h)
Nominal power	7500 W
Internal dimensions	700 × 800 × 900 mm
Overall dimensions (mm)	1180 × 1350 × 2010 mm
Power & voltage	AC 380 V 50Hz

Features :

• - Use this static and dynamic combined sample holders
• - PID programmable controller with LED touch screen display
• - Equipped with UV detector to detect the concentration of ozone
• - Designed with combination of three control systems- PLC, HMI and SOC
• - Incorporated with protection module for safety voltage
• - Solid and durable structured closed-type compressor unit
• - User-friendly and reliable
• - Stable and require low maintenance
• - Consists of highly efficient low noise ozone generator
• - Made up of corrosion resistant stainless steel body

Applications:

Applied to various industries such as automobile, rubber & plastics, packaging, medical equipment, colleges and universities, research laboratories etc.
