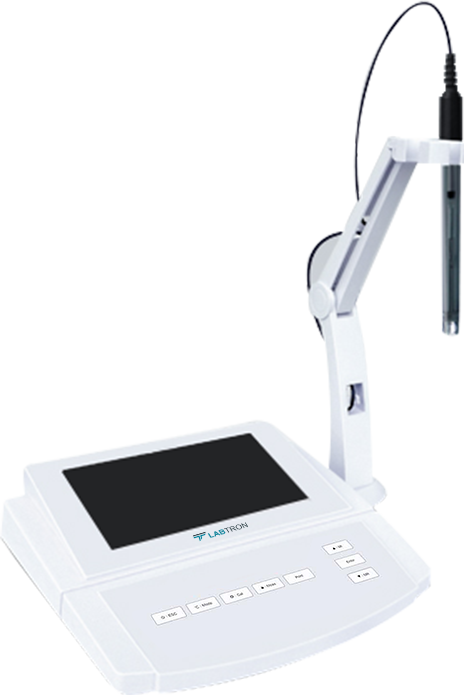

Benchtop pH Meter LBPM-B11 Catalog

Overview

Benchtop pH meter LBPM-B11 is a tabletop meter with a pH range of -2.000 to 20.000 and 1 to 5 calibration points. Automatic temperature compensation provides accurate reading over entire pH range. Solution temperature coefficient compensates for the pure water samples. Relative and absolute modes provide reliable ORP measurements.

Specifications :

Temperature compensation	0 to 100°C, 32°F to 212°F Manual or Automatic
Hold function	Manual or automatic endpoint detection
Stability criteria	Standard or High-accuracy
Interval readings	10, 30, 60 seconds, 10, 30 minutes or Off
Calibration due alarm	1 to 31 days
Memory	Stores up to 1000 data sets
Output	USB communication interface
Display	7 inch TFT LCD
pH Specifications	Measuring range -2.000 to 20.000 pH Accuracy ± 0.002 pH Resolution 0.001, 0.01 pH Calibration points 1 to 5 points
mV Specifications	Measuring range ± 2000 mV Accuracy ± 0.1 mV Resolution 0.1 mV Calibration points 1 point ( Only for relative mV mode )
Temperature Specifications	Measuring range 0 ~ 105 °C, 32 °F ~ 221 °F Accuracy ± 0.5 °C, ± 0.9 °F Resolution 0.1 °C, 0.1 °F Calibration points 1 point
Power	DC 1 2V / 2A power adapter
Dimensions ( L x W x H )	240 × 220 × 80 mm
Weight	1.7 kg

Features :

• - 1 to 5 points push-button calibration with auto-buffer recognition
• - pH buffer group (selectable)
• - Automatic electrode diagnosis with pH slope and offset display
• - Automated temperature compensation
• - Alarm alerts when reading exceeds range
• - 1 point offset calibration allows adjustment of displayed value to a known standard
• - Calibration due reminder (to calibrate the meter)
• - Interval readings automatically sends the measured data to the computer or printer
• - Password protection prevents unauthorized calibration and settings
• - Expanded memory stores and recalls up to 1000 data sets
• - Stored readings can be transferred into the computer by USB communication interface
• - Reset feature automatically resumes all settings back to factory default options

Applications:

Used for daily measurement of pH, ORP and temperature at schools, colleges and research laboratories and water testing plants
