Portable Autoclave LPOA-B14 Catalog

Overview

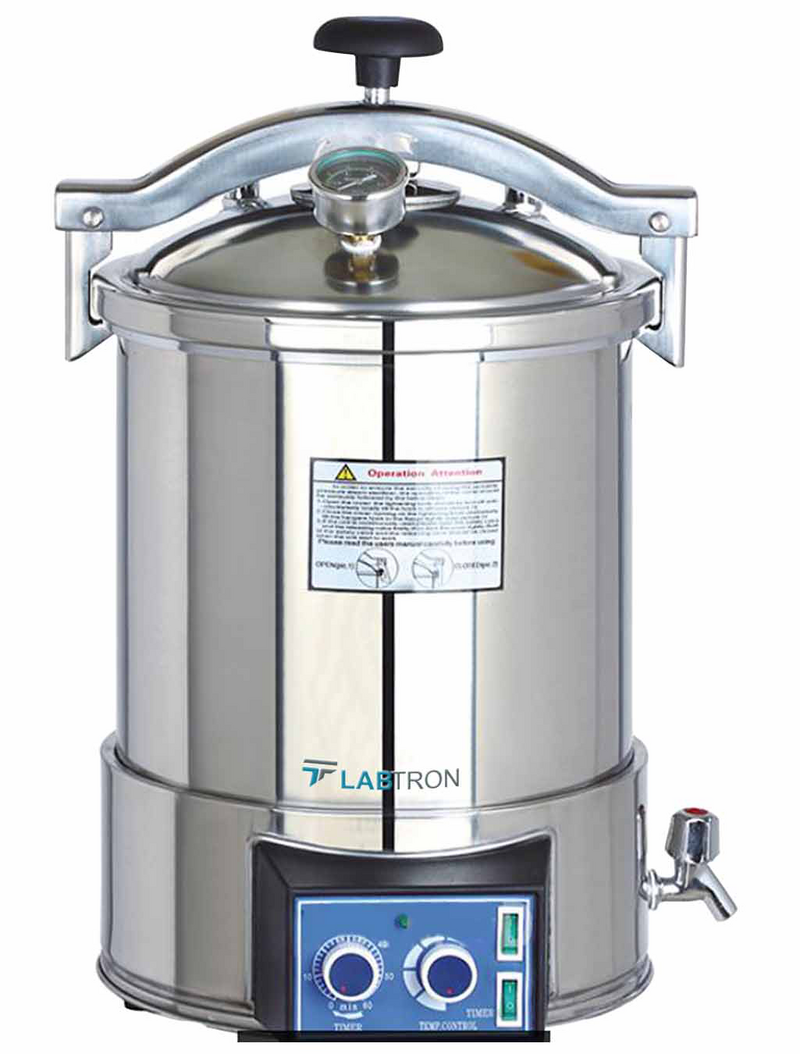

Portable autoclave LPOA-B14 is a 24 L electric heated microprocessor controlled unit with a sterilizing temperature of 126 °C. It is a Class N autoclave equipped with two pressure gauges to indicate inner and interlayer pressure with interlock device for safety and a timer range of 0 ~ 60 mins providing efficient sterilization process resulting in destruction of all living organisms. The lid of the instrument is a hand wheel, making is easy to use rather than the conventional knobs.

Specifications :

Volume of Chamber	24 L
Working temperature	126 ℃
Heating mode	Electrically heated
Timer range	0 ~ 60 mins
Working pressure	0.14 ~ 0.16 MPa
Max safety pressure	0.165 MPa
Heat average	≤ ± 1℃
Temp adjustment	105 ~ 126 ℃
Power	AC 220 V / 50 Hz
Overall Dimension	420 × 420 × 750 mm
Net Weight	14 Kg
Gross Weight	15 Kg

Features :

• - Working temperature : 126 ℃
• - Overheating and pressure warning indicator
• - Indicator light to indicate the working
• - Digital timer of 0 ~ 60 min
• - Automatic beep indication at the end of every cycle
• - Low water level indicator automation
• - Stainless steel sterilizing baskets
• - Reliable and safe self-inflating leak proof chamber
• - Dual scale indicating pressure gauge
• - Inner and outer chamber constructed by stainless steel
• - Electric heated

Applications:

Used in industries to sterilize equipment, bacteriological and research laboratories, medical, clinical and pharmaceutical industries
