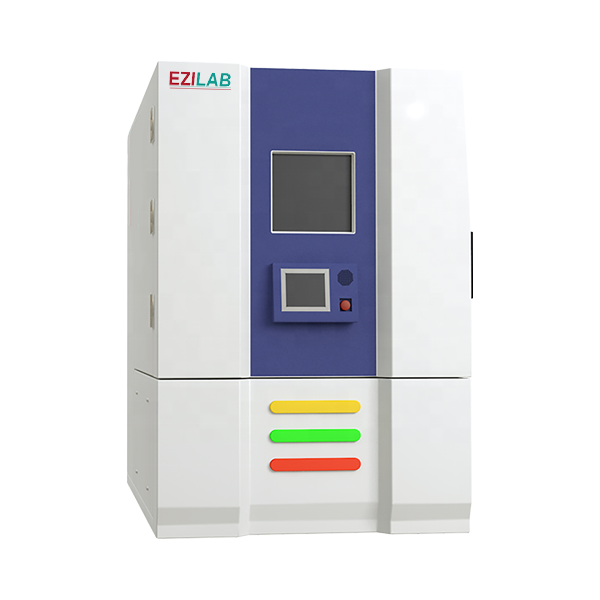

Temperature and Humidity Test Chamber EZL-TH169 Catalog

Overview

Temperature and Humidity Test Chamber EZL-TH169 is a well-built chamber used for determining or creating an accurate temperature humid zone in accordance with the materials used. The unit is set to operate at a temperature range of -73° to +180° C, with humidity control ranging from 10 to 98%. It employs a specialized air circulation system within the 1540-liter test area to ensure specimen safety as determined by sensors. A 7-inch color touch screen with programmable 32-bit control system for protection control during running processes is equipped.

Specifications :

Test Space Volume	1540 L
Temperature Range	-73° to +180°C
Temperature Consistency	±0.1 to ±0.5°C
Temperature Homogeneity	±0.5 to ±2.0°C
Heating Rate	3.5°C/min
Cooling Rate	2.3°C/min
Thermal Compensation	3000 W
Dew Point Temperature Range	+4(-3°C) to 94
Humid Range	10 to 98% RH
Humid Fluctuation	±1.0 to ±3.0 %RH
Maximum Thermal Compensation	500 W
Cooling Method	Air cooled
Power Supply	AC380V±10%, 50 Hz, 3/N/PE
Test Space Dimension (W×D×H)	1100×1470×950 mm
External Dimension (W×D×H)	1390×2680×1995 mm

Features :

• - 7-inch color touch screen display with intuitive operation
• - Automatic water supply
• - Strong control abilities of extreme low humidity range
• - 32 bit control system
• - 4 load power outlets for specimens with programmable control for protection
• - Specialized air circulation system ensures testing accuracy
• - Independent sensors to prevent specimen from damages caused due to overheat, dewing and smog
• - Optional network video monitoring and data synchronization
• - Environment friendly refrigerating control technology
• - Automatic reminder of equipment maintenance plans
• - Additional software for recording malfunctions
• - Block construction with easy reach-in maintenance
• - User friendly control desk
• - LED illuminated work space with glass view window
• - High grade interiors with adjustable tray channels
• - Easy access door handle
• - High performance and low noise operation
• - Complete thermal break around door frame

Applications:

They provide a superior level of performance over a wide range of application areas including testing products related to aerospace, electronics, pharmaceutical, automobile and environmental stress screening etc.
