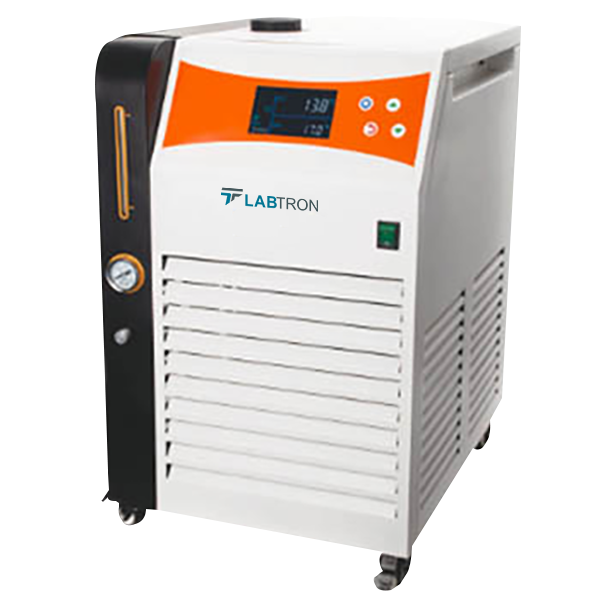

Recirculating Chiller LRC-A10 Catalog

Overview

Recirculating Chiller LRC-A10 is high performance circulating water pump with 0 to 1.5 bar pump capacity pressure. Its temperature ranges from 5˚C to 40˚C and offers PT100 temperature sensor. Designed with TECUMSEH compressor in order to ensure cooling efficiency and reduce noise with PID temperature controlling technology. Equipped with Over-temperature protection, auto-alarm function and Color LCD screen display for more running data and dynamic identifier.

Specifications :

Temperature range	5˚C to 40˚C
Temperature control	PID
Temperature stability	± 0.3˚C
Temperature sensor	PT100
Display resolution	0.1˚C
Pump flow rate	20 L/min
Cooling consumption	1.2 kW
Refrigerant	R 134 a
Pump capacity pressure	0 to 1.5 bar
Filling volume	8 L
External dimension	550 × 400 × 650 mm
Packaging dimension	750 × 580 × 910 mm
Power supply	AC 220 V ±10 %, 50 Hz
Gross weight	74 kg

Features :

• - Designed with TECUMSEH compressor in order to ensure cooling efficiency and reduce noise
• - Adopts PID temperature controlling technology
• - EEV technology improve the stability and stat-stop type cooling method
• - Equipped with Over-temperature protection and auto-alarm function
• - Refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value
• - Designed with moveable castor and pressure gauge displayed
• - Water level observation window and automatic water level detection device, automatic alarm when low liquid level
• - Water current detection device and external cycle closed or blocked
• - Automatically switched internal cycle
• - High performance circulating water pump
• - Long time continuous running and good sealing avoid leakage
• - The pressure of pump is 0 to 1.5 par and adjustable by rotary knob
• - Color LCD screen display more running data and dynamic identifier

Applications:

Recirculating Chiller is used in Kjeldahl apparatus, Soxhlet extractor, Crude Fiber Analyzer, AAS, ICP-MS, Electrophoresis System, Rheometer, Automatic Synthesizer, Fermentation Apparatus, Rotary Evaporator, Extraction and Condensation Device, SPE Apparatus.
