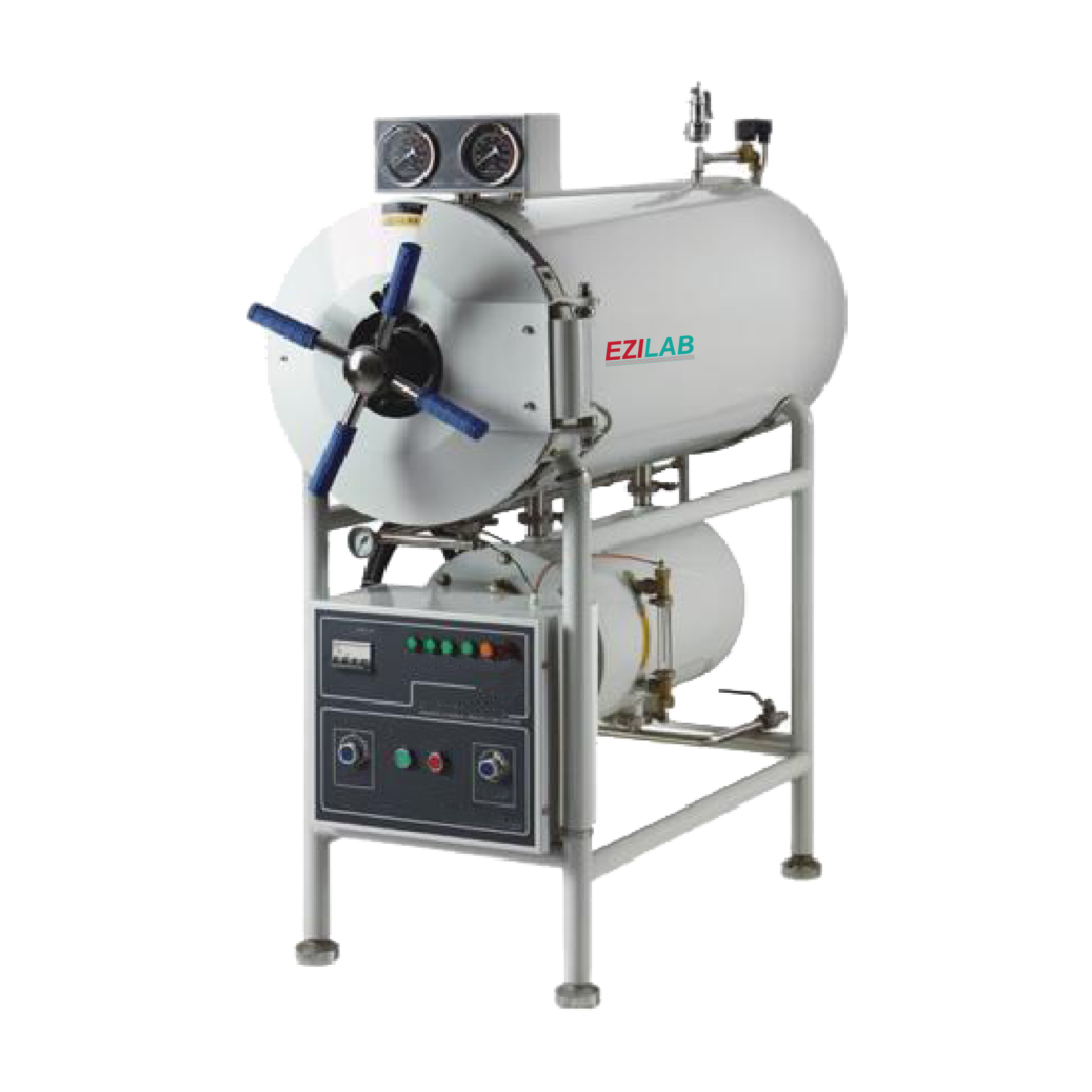

Horizontal Autoclave EZL-CH83 Catalog

Overview

Horizontal Autoclave EZL-CH83 is a front loading cylindrical autoclave with a 280-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 – 60 minutes and a working temperature range of 134°C. The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running.

Specifications :

Sterilizing Chamber Volume	280 L
Working Pressure	0.22MPa
Working Temperature	134°C
Adjustable Temperature Range	40° - 134°C
Sterilization Time	0 – 60 minutes
Drying Time	0 – 60 minutes
Heat Average	≤ ±2°C
Power	12 KW
Power Supply	AC 380V, 50Hz
Chamber Dimension (ɸ×D)	600 ×1000 mm
Dimension (L×W×H)	1400×770×1780 mm
Package Dimension (L×W×H)	1680×920×2100 mm
Net Weight	365 Kg
Gross Weight	465 Kg

Features :

• - Stainless steel interior and exterior to increase durability and reliability
• - Standard working temperature 134°C
• - Front loading cylindrical autoclave design
• - Automated drying function
• - Automatic pressure control switch
• - Automatically controlled sterilizing process, easy to operate
• - Over – temperature, over – pressure and auto – protect functions
• - Automatic water level cut-off
• - Safety audible and visible alarms
• - Digital temperature controller
• - Silicon rubber door gasket
• - Door cannot be opened until the pressure in the chamber is reduced to 0.027MPa
• - Safe door lock system ensuring protection during sterilization
• - Control system automatically adjusts steam inlet and outlet according to chamber temperature

Applications:

Cylindrical horizontal autoclave is an ideal equipment for clinics, scientific research institutes, medical laboratories and microbiological organizations to sterilize surgical instruments, glassed fabrics and culture media etc.
