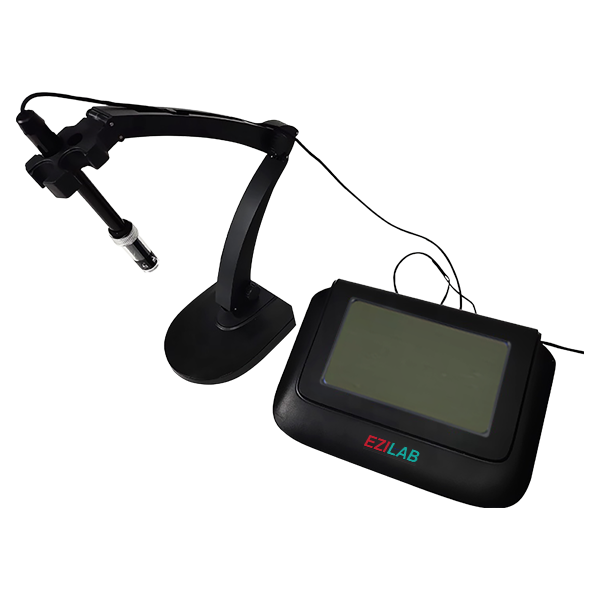

Desktop Ion Concentration Meter EZL-ICM123 Catalog

Overview

Desktop Ion Concentration Meter EZL-ICM123 is a microprocessor-based device designed for continuous measurement and determination of chlorine (Cl) ion concentration. The automatic temperature compensation (ATC) ranges from -10.0 °C to 110.0 °C maintains reading accuracy even with fluctuating temperatures, and a measurement range pH/pX of (-2.00 to 20.00) pH, (0.00 to 14.00) pX makes it suitable for the IC determinations.

Specifications :

Measurement Range	pH/pX -2.00 to 20.00 pH, 0.00 to 14.00 pX mV -1999.9 to 1999.9 mV Concentration 0 to 19990, Optional Units: mol/L, g/L, ppm Temperature -10.0 °C to 110.0 °C
Resolution	pH/pX 0.01 pH/pX mV 1mV Concentration 4 significant digits ( Expressed in scientific notation) Temperature 0.1 °C
Accuracy	pX/pH ± 0.01 pH/pX mV ± 0.1 % FS Concentration ± 0.3 % Temperature ± 0.1 °C
Power	DC 12 V/1 A, With standard power adaptor
Dimensions (W×D×H)	270×170×70 mm
Weight	600 g

Features :

• - Tests ions in aqueous solutions
• - Large, dual-display LCD and a water-resistant keyboard
• - Measures pH, temperature, ORP, ion concentration and relative mV
• - 7-inch colour capacitive screen with 1024×600 high resolutions
• - Auto-calibration, auto-temperature compensation and data storage
• - USB data export, clock, wireless printing, self-diagnosis
• - Data storage is of 1000 sets and can be edited and is transferable
• - Can switch between different units (g/L, mol/Land ppm)
• - Smart judge of electrode status provides accurate operation
• - Wireless Bluetooth block
• - Optional data transmission to PC and cell phone via wireless Bluetooth

Applications:

Test and analysis of the different ions in: Drinking water, surface water, sea water, food, sewage, living sewage and industrial wastewater. And the ions in mineral, organic, and biological materials and many others.
