Desktop Ion Concentration Meter EZL-ICM128 Catalog

Overview

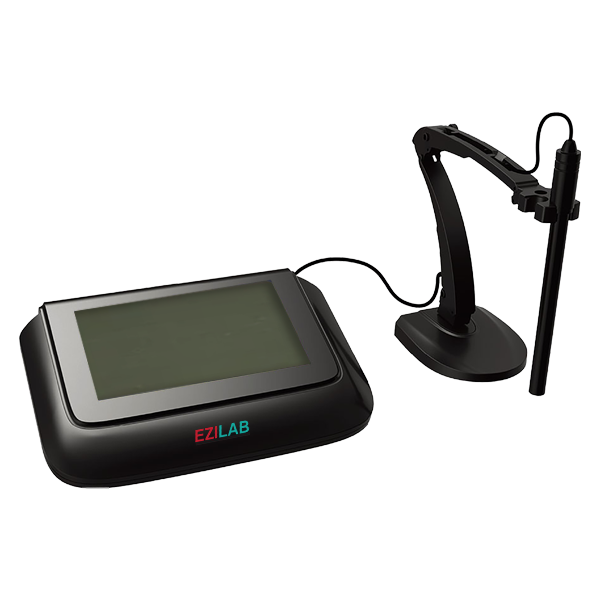

Desktop Ion Concentration Meter EZL-ICM128 is a microprocessor-based device designed for continuous measurement and determination of ammonium (NH4) ion concentration. Test ammonium ion and pH values in drinking water, food and sewage. The automatic temperature compensation (ATC) ranges from -10.0 °C to 110.0 °C maintains reading accuracy even with fluctuating temperatures, and a measurement range pH/pX of (-2.00 to 20.00) pH, (0.00 to 14.00) pX makes it suitable for the IC determinations.

Specifications :

Measurement Range	pH/pX -2.00 to 20.00 pH, 0.00 to 14.00 pX mV -1999.9 to 1999.9 mV Concentration 0 to 19990, Optional Units: mol/L, g/L, ppm Temperature -10.0 °C to 110.0 °C
Resolution	pH/pX 0.01 pH/pX mV 1mV Concentration 4 significant digits ( Expressed in scientific notation) Temperature 0.1 °C
Accuracy	pX/pH ± 0.01 pH/pX mV ± 0.1 % FS Concentration ± 0.3 % Temperature ± 0.1 °C
Power	DC 12 V/1 A, With standard power adaptor
Dimensions (W×D×H)	270×170×70 mm
Weight	600 g

Features :

• - Tests ions in aqueous solutions
• - Large, dual-display LCD and a water-resistant keyboard
• - Measures pH, temperature, ORP, ion concentration and relative mV
• - 7-inch colour capacitive screen with 1024×600 high resolutions
• - Auto-calibration, auto-temperature compensation and data storage
• - USB data export, clock, wireless printing, self-diagnosis
• - Data storage is of 1000 sets and can be edited and is transferable
• - Can switch between different units (g/L, mol/Land ppm)
• - Smart judge of electrode status provides accurate operation
• - Wireless Bluetooth block
• - Optional data transmission to PC and cell phone via wireless Bluetooth

Applications:

Test and analysis of the different ions in: Drinking water, surface water, sea water, food, sewage, living sewage and industrial wastewater. And the ions in mineral, organic, and biological materials and many others.
