Overview

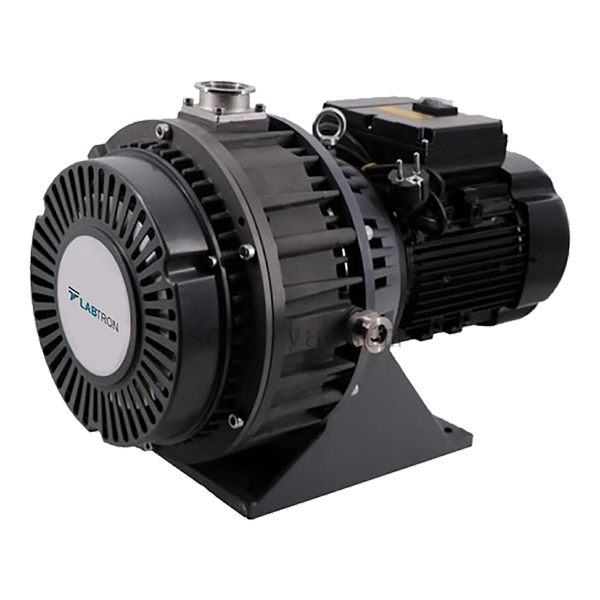

Scroll Vacuum Pump LSVP-A13 is suitable to use in molecular pump backing, accelerators and synchrotrons, capacitor exhaust, surface analysis instruments, E-beam and laser melting, spectroscopy and scanning electron, leak detection, space environment animation, glove box and coating PVD, CV and PLD. It is a portable unit, offers ambient operation temperature ranges from 41 to 104°F and maximum inlet and exhaust pressure of 0.1 / 0.13 MPa. Designed with air cooling system, air flush and innovative scroll design that reduces vibration and noise. It is reliable, durable, oil-free, high performance vacuum pump, combined with lower power consumption and lower ultimate pressures.
Specifications :
| Ambient Operation Temperature |
41 to 104°F
|
| Maximum Inlet and Exhaust Pressure |
0.1 / 0.13 MPa
|
| Leakage |
1×10-7 mbar·l/s
|
| Cooling Type |
Air cooled
|
| Noise Level |
≤ 61 dB
|
| Others |
With air flush
|
| Pumping Speed |
| 50 Hz | 8.7 L/s |
|---|
| | 522.0 L/min |
| | 31.3 m3/h |
| | 18.7 cfm |
| 60 Hz | 10.4 L/s |
| | 626 L/min |
| | 37.4 m3/h |
| | 22.3 cfm |
| Ultimate Pressure | ≤ 1.0×10-2 mbar |
| | ≤ 7.5×10-2 Torr |
| | ≤ 7.5 micron |
| | ≤ 1.4×10-4 psi |
|
| Motor 1 phase |
| Power |
Nil |
| Voltage |
Nil |
| Speed |
Nil |
| Connect |
Nil |
|
| Motor 3 phase |
| Power |
0.75 kW |
| Voltage |
50 Hz/200 V to 230 V or 380 to 415; 60 Hz/200 V to 230 V or 460 V |
| Speed |
50 Hz /1425 rpm; 60 Hz /1725 rpm |
| Inlet and Exhaust Flange |
KF40/16×2 |
|
| Dimensions (W×D×H) |
| 1 Phase |
Nil |
| 3 Phase |
630×440×410 mm |
|
| Net Weight |
| 1 Phase |
Nil |
| 3 Phase |
52 kg |
|
