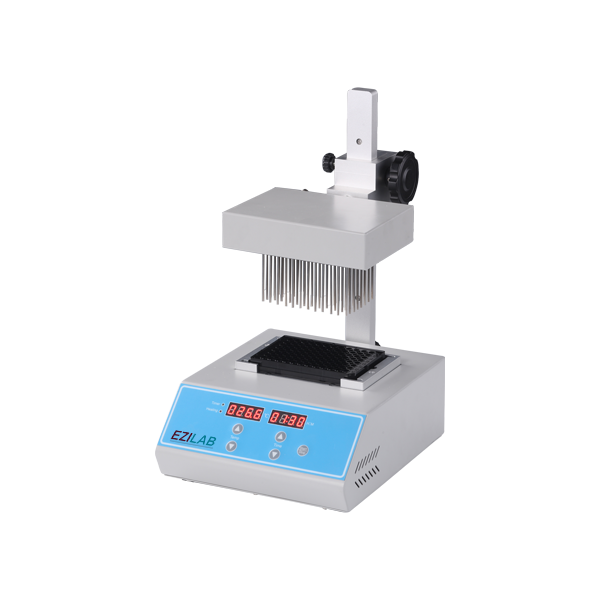

Sample Concentrator EZL-SC125 Catalog

Overview

Sample Concentrator EZL-SC125 has precise temperature control management that is controlled by a microprocessor and the PID fuzzy technique. The nitrogen air is blown on the sample surface, which is continuously heated until evaporation occurs and the solvents are separated without the addition of oxygen. It has a temperature control range of + 5°C to 160°C, a timing range of 1 min to 99 min 59 sec and 1 block. The nitrogen Sample Concentrator can efficiently concentrate many samples at the same time without the use of a rotary evaporation instrument.

Specifications :

Temperature Range	RT+ 5°C to 160°C
Temperature Accuracy (@40 ℃)	± 0.5℃
Temperature Accuracy (@120 ℃)	±1℃
Temperature Uniformity	± 0.5℃
Display Accuracy	0.1℃
Time Range	1 to 99 h 59min/∞
Heating Time	≤ 15min(from 25℃ to 160℃)
Needle Length	150mm
Maximum Gas Usage	15 L/min
Maximum Gas Pressure	0.05 Mpa
Block Quantity	1
Maximum Power	500W
Voltage	AC220V or AC110V/50 to 60Hz
Dimension ( W x L x H )	260 x 220 x 450mm
Weight	7.5kg

Features :

• - High accuracy with a wide range of control management
• - Blowing many samples simultaneously
• - Easy to set up and easy to use and definitive in function
• - Highly precise and having temperature control property
• - Maximum Gas Usage is 15 L/min for accurate results
• - It has 1 block to accommodate the samples
• - It can heat up the samples with temperature range of + 5°C to 160°C

Applications:

Environmental analysis such as drinking water, groundwater and polluted water samples. hormone analysis, sample preparation of liquid phase and gas phase and mass spectrometry analysis. In the food and beverages industries and in the pharmaceutical industry.
