Gel Documentation Imaging System EZL-GD132 Catalog

Overview

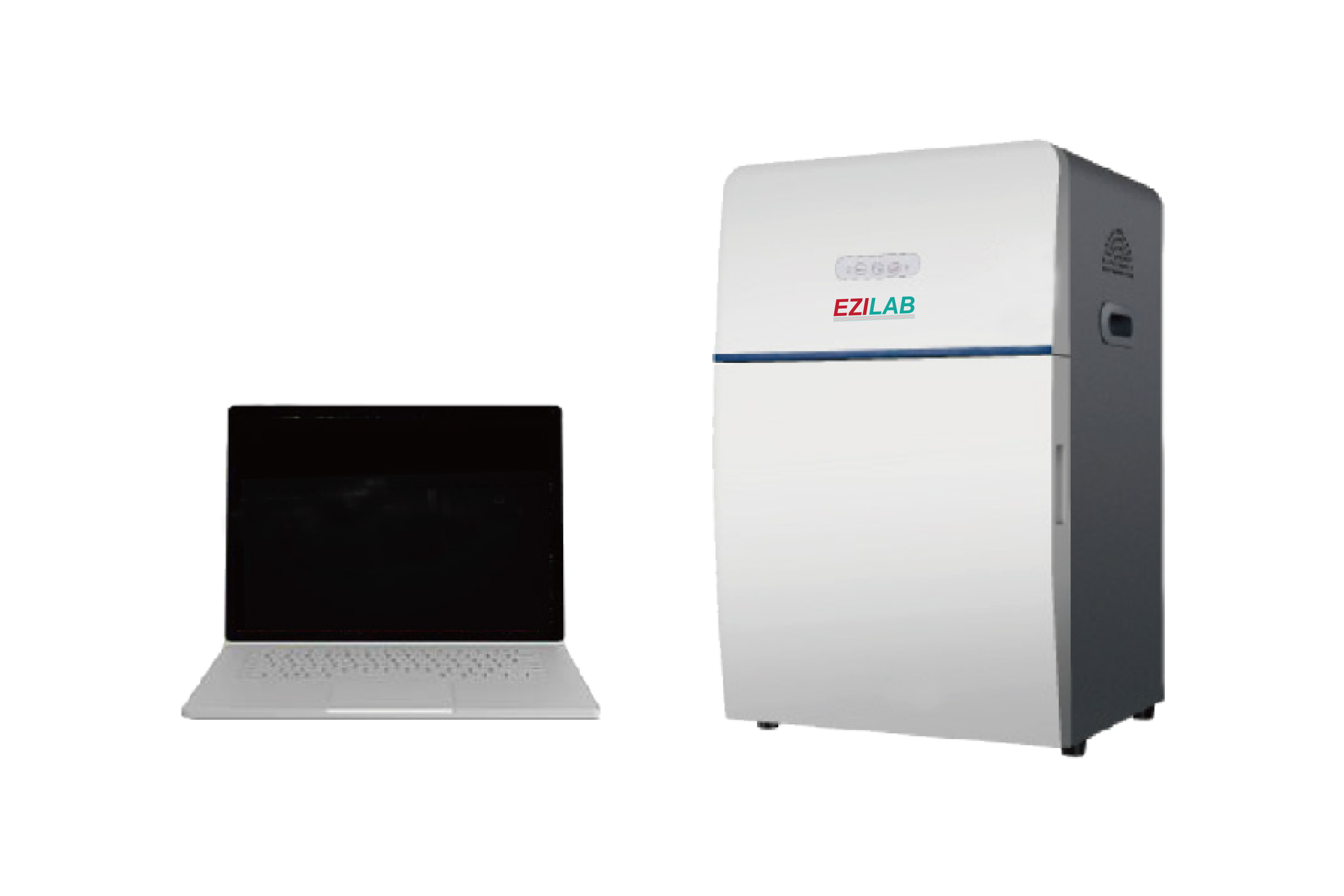

Gel Documentation Imaging System EZL-GD132 is designed for the identification of nucleic acids and proteins using a scientific digital camera with 5.2 megapixels, F1.2 motorized lens to produce 16 bit images. The touch screen displays a wide range of sensor observed imaging applications, compact gel doc system can be supplied with a UV trans-illuminator or blue light table.

Specifications :

Camera	Scientific Digital Camera
Resolution	5.2 Megapixels, 2560×2048
A/D	16 bit ( 65536 Grayscale)
Pixel Density	16 bit ( 65536 Grayscale)
Quantum Efficiency	≥ 82%
Read Out Noise	3.2e-RMS
Dark Current	1e-/pixel/sec 25°C
SNR	72.8db
Product Dimension (W×D×H)	430×380×690 mm
Outer Pack Dimension (W×D×H)	550×490×760 mm
Gross Weight	31 kg

Features :

• - Polymer by RIM molding
• - Better user experience
• - Switchable operation mode
• - UV smart trans illuminator
• - Blue and white light trans illuminator
• - Intelligent workflow
• - User interface allows total customization over imaging protocols
• - High precision automatic exposure
• - Advanced pixel binning technology
• - Automatic access of capture parameters
• - Image cropping, rotation and counter color process
• - Convenient image navigation and browsing
• - Calculation of optical density for the quantitative analysis
• - Optimization of the visual effects by wiping background mode

Applications:

This system is widely used for Gel inspection, Protein inspection, ELISA plate, Petri dish colony counter and TLC plate etc.
