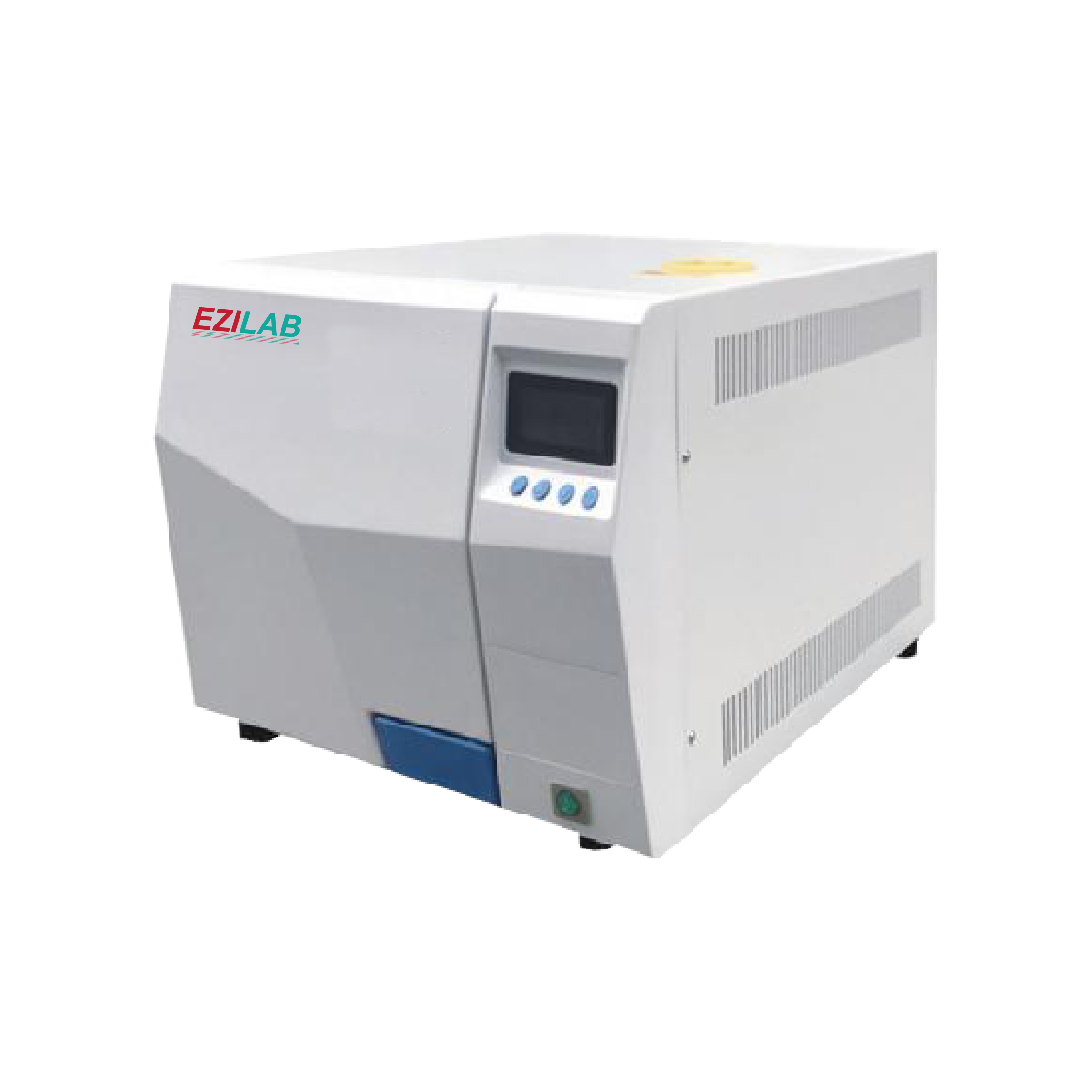

Table Top Steam Sterilizer EZL-ST61 Catalog

Overview

Table Top Steam Sterilizer EZL-ST61 is a front loading bench-top sterilizer available with a chamber volume of 20 L. The wide chamber opening facilitates for easy loading and un-loading, operated within a temperature range of 134°C under 0.22Mpa pressure within 0 to 99min timer cycle range. Compact on the outside but has ideal chamber capacities inside, with chamber and sterilizing plates made of stainless steel material allowing for drying function provided with automatic shut off function with an alert signal.

Specifications :

Chamber Volume	20 L
Sterilizing Temperature Range	105°C - 134°C
Working Temperature	134°C
Working Pressure	0.22 Mpa
Timer Range	0-99 min
Rapid Sterilization	4 – 6 minutes
Sterilizing Plates	3
Heat Average	≤ ±1°C
Sterilizing Chamber Dimension	ɸ250×420 mm
Dimension (L×W×H)	480×480×380 mm
Exterior Package Dimension (L×W×H)	700×580×500 mm
Gross Weight	43 Kg
Net Weight	40 Kg

Features :

• - High grade stainless steel chamber
• - Rapid action door closure mechanism
• - Standard operation via a digital display
• - High-efficiency and easy to use
• - Exhausts the cool air automatically
• - Water adding, sterilizing, dry steam discharging are controlled automatically
• - Steam-water inner circulation system
• - Electrical draining of water reservoir
• - Automatic purging of steam and exhaust with water
• - Fully automatic micro-computer controlled operation
• - Leak-proof sealing with gasket design
• - Offers rapid sterilization of 4 – 6 minutes within 105°C to 134°C temperature range
• - Provides clean and dry environment for sterilization
• - Safety door lock system

Applications:

It is an ideal equipment for sterilization in healthcare, Pharmacy QC, QA, R&D, chemical plants, dental clinics, biotechnology labs, water & air pollution labs and mineral water plants etc.
