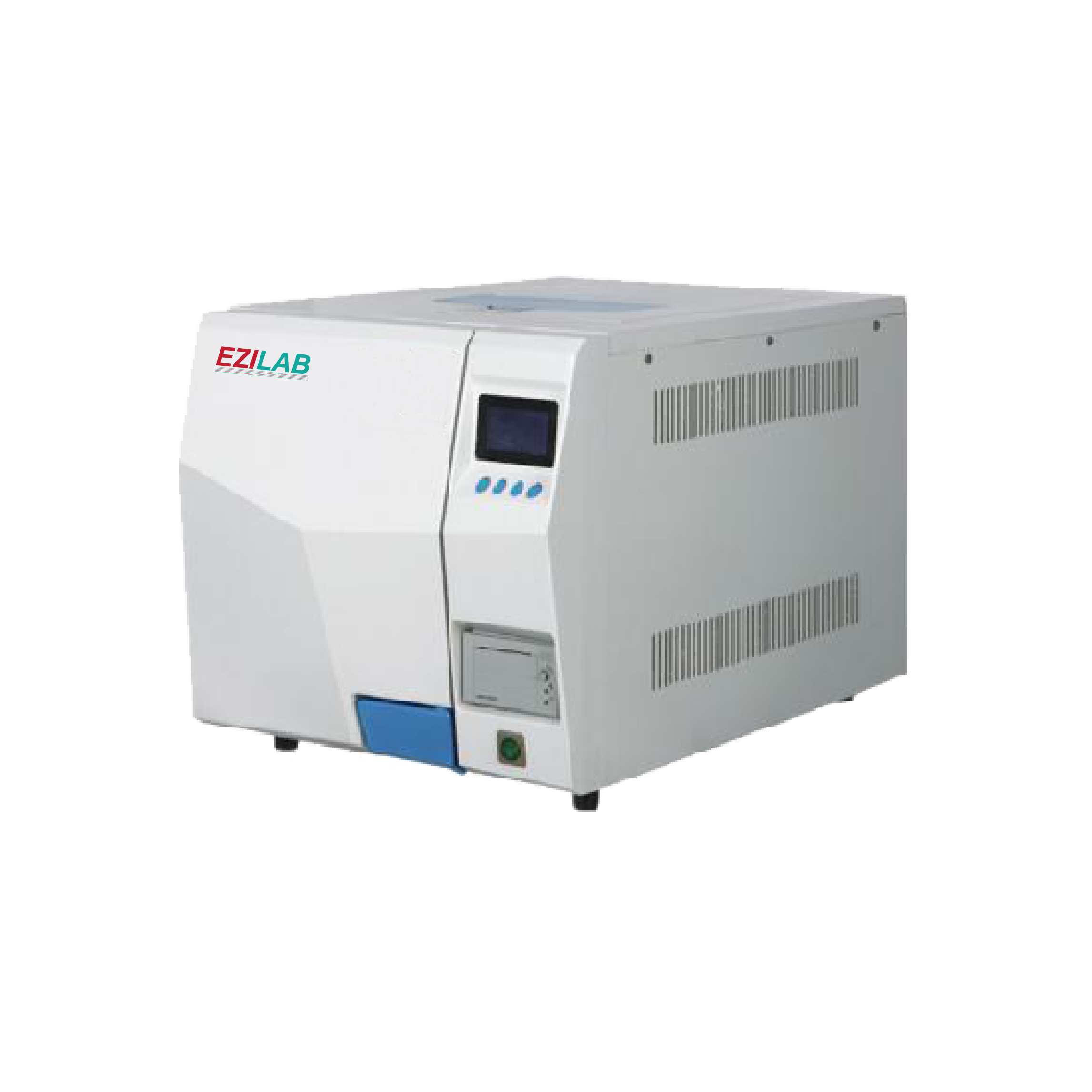

Table Top Pulse Vacuum Steam Sterilizer EZL-TP63 Catalog

Overview

Table Top Pulse Vacuum Steam Sterilizer EZL-TP63 is a high-pressure sterilizer that employs saturated steam as a sterilant. It is a 24-liter unit with a working pressure of 0.22MPa and a temperature range of 134°C. This Class B sterilizer features an LCD display with soft key buttons for adjusting the various hardware parameters that are being monitored in real time. All cycle segments begin and run to completion with full automatic operation by simply pressing the start button. It features a mechanical and electrical safety interlock that prevents the door from opening until the pressure drops to zero PSI.

Specifications :

Chamber Volume	24 L
Sterilizing Temperature Range	105°C - 134°C
Working Temperature	134°C
Working Pressure	0.22 MPa
Timer Range	0-99 minutes
Heat Average	≤ ±1°C
Power Consumption	2 KW
Power Supply	AC 220V, 50 Hz
Sterilizing Chamber Dimension	ɸ250×360 mm
Dimension (L×W×H)	675×470×400 mm
Exterior Package Dimension (L×W×H)	790×580×580 mm
Gross Weight	58 Kg
Net Weight	53 Kg

Features :

• - One-key smart operation for the whole process
• - Built-in mini printer to record the sterilizing information
• - Fully computer controlled with LCD display
• - Adjustable sterilization times
• - Auto safety shutoff prevents chamber overheating
• - Audible indication in case when cycle is incomplete
• - Provides clean and dry environment for sterilization
• - High performance and easy operation
• - User friendly control panel

Applications:

These are designed for dental clinics, hospitals, scientific research institutions and various biomedical, pharmaceutical laboratories. It is mostly suitable for sterilizing of surgical, dental and eye instruments, glassware, culture medium, biological dressing and food etc.
