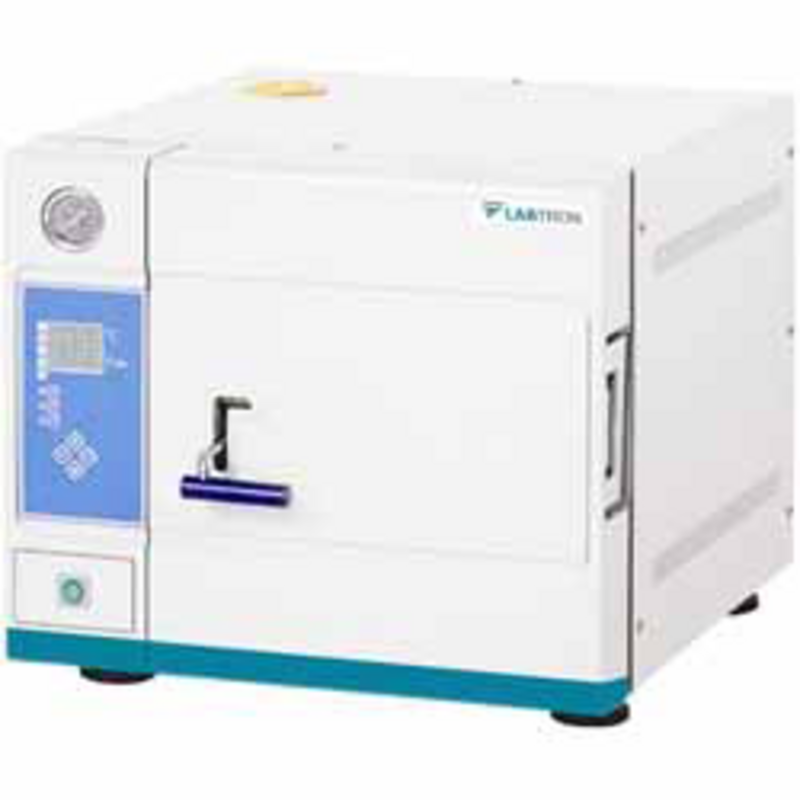

Tabletop Laboratory Autoclave LTTA-B12 Catalog

Overview

Table top autoclave LTTA-B12 is a robust and compact, space efficient unit with 35 L of capacity and a sterilizing temperature of 134 °C. It is equipped with auto dry function along with safety features like automatic shutoff preventing overheating of chamber, automatic cold air discharge and auto protection against raised temperature and pressure making a reliable and user friendly device. Qualitative results are achieved due to automation avoiding human errors.

Specifications :

Capacity	35 L
Sterilization Temperature	105 °C - 134 °C
Sterilization Pressure	0.22 MPa
Number of sterilizing baskets	4
Timer Range	0 - 99 minutes
Chamber Dimension (Φ×D)	300 × 500 mm
Net Weight	73 kg
Gross Weight	90 kg
Power Supply	2.7 kW / AC 220 V 50 Hz

Features :

• - Digital LCD display to monitor working status and parameters
• - Working temperature : 134 ℃
• - 4 – 6 mins rapid sterilization
• - Automated drying function
• - Equipped with interior circulate system
• - Inner steam circulatory system
• - Automatic cold air discharge from system chamber ensures dry and clean environment
• - Door lock feature : Door cannot be opened till the pressure inside the chamber reduces
• - Self-inflating leak proof chamber
• - Auto exhaustion of cool air
• - Safe door lock system ensuring safety / protection during sterilization
• - Automatic power cut off with alarm with low water levels indication
• - Stainless steel sterilizing baskets

Applications:

Table top autoclave has application in medical, clinical and drug testing research and also in hospitals, cosmetic salons & organizations and for sterilization of fabric, glasses, culture media etc.
