Type I and Type III RO Water Purification System LOTW-B20 Catalog

Overview

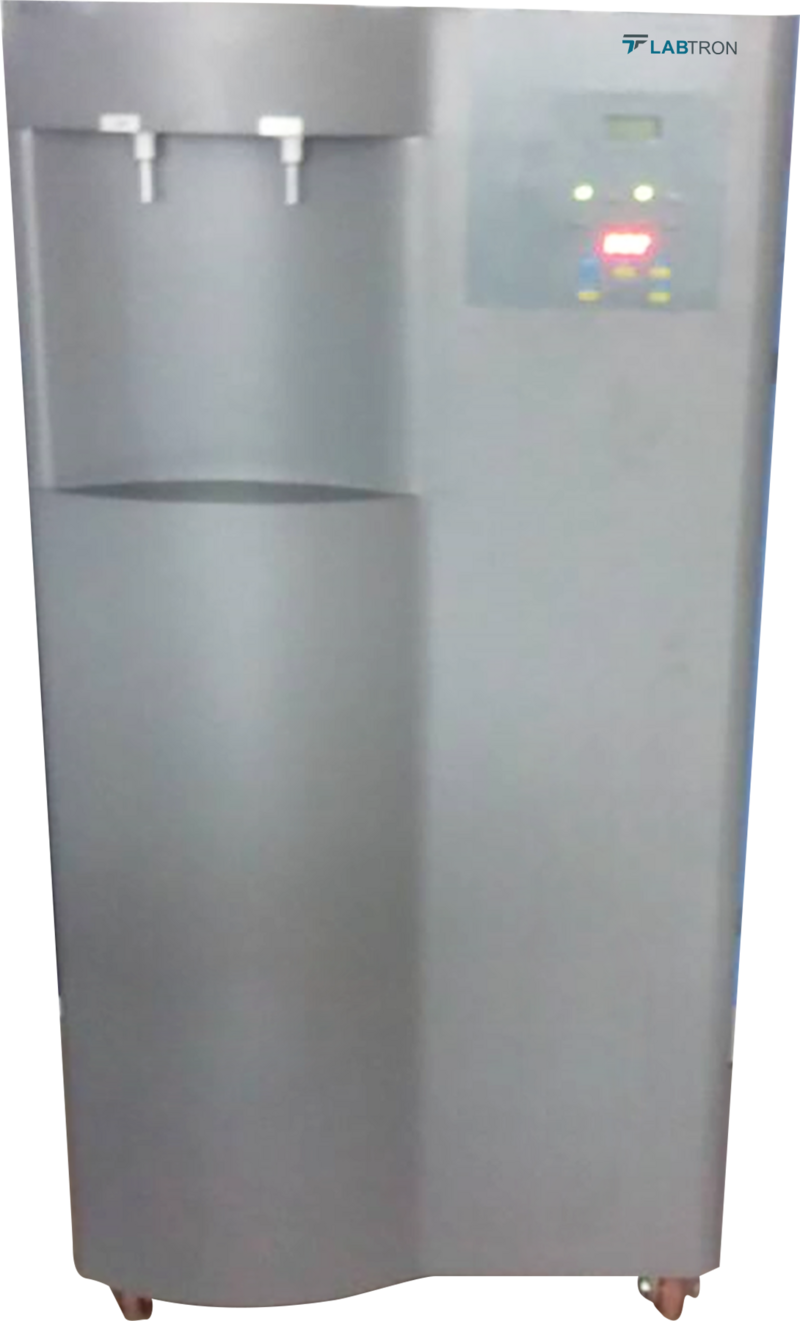

Type I and Type III RO Water Purification System LOTW-B20 is a unit which delivers primary grade water as well as ultra-pure water and has 30 L/hr standard flow rate. Meets the standards of ASTM, CAP and NCCLS. Features like built-in RO membrane antiscalant, ultra purification cartridge, online-monitoring of water resistance, manual water cycling program etc. ensures consistent quality of water. The unit composes of pre-treatment system, RO membrane, Water pump and ultra-purification system. It is majorly required in analytical labs.

Specifications :

Water production rate	≥ 30 L/h
Water intake rate	1.5 to 1.8 L/min
Temperature	5 to 40°C
Humidity	10% to 80%
Feed water	Tap water: 0.15 to 0.4 MPa TDS ≤ 400 ppm Water temperature: 5 to 40°C
Water quality	Resistivity: 18.25 MΩ.cm at 25°C Conductivity: 0.055 μS/cm at 25°C Meets ASTM, CAP, NCCLS specifications
Retention rate of silicon	> 99.9 %
TOC	< 20 ppb
Particle (> 0.22 μm)	< 2 /ml
Absorbance (254 nm, 1cm optical distance)	< 0.001
Reactive Silica (SiO2)	< 0.01 ppm
Heavy metal	< 0.01 ppm
Power supply	220 V/50 Hz 450 W
Dimension (L×W×H)	490×550×850 mm

Features :

• - Micro-computer control
• - Anti-scalant for RO membrane, automatic flush, manual cleaning of RO membrane
• - Manual water-cycling program, ultrapure water auto-cycle program to maintain the water quality
• - On-line monitoring of Water resistance
• - High capacity Cartridge of Ultra Purification System
• - 30 L sterile pure water tank
• - Pre-treatment System
• - Eliminates tiny particles, suspended solids and colloid
• - Reduce inlet water turbidity
• - Prevents RO membrane from fouling
• - RO Membrane
• - USA imported RO membrane
• - Effectively eliminates salt ions, organics, bacteria and virus in water
• - Desalination and sterilization rate reaches 99%
• - Membrane pure water pump
• - Fast speed to intake ultrapure water
• - Speed can reach up to 1.5 to 1.8 L/min
• - Ultra-purification system
• - With ion exchange resin and special flow design
• - Effectively remove the trace ions in water
• - Guarantees the stability of water quality

Applications:

It used to obtain ultra-pure water which is required in pharmaceutical, microbiology, genetic, optical, electronics, medical etc. processes.
