Shaker Incubator EZL-SI83 Catalog

Overview

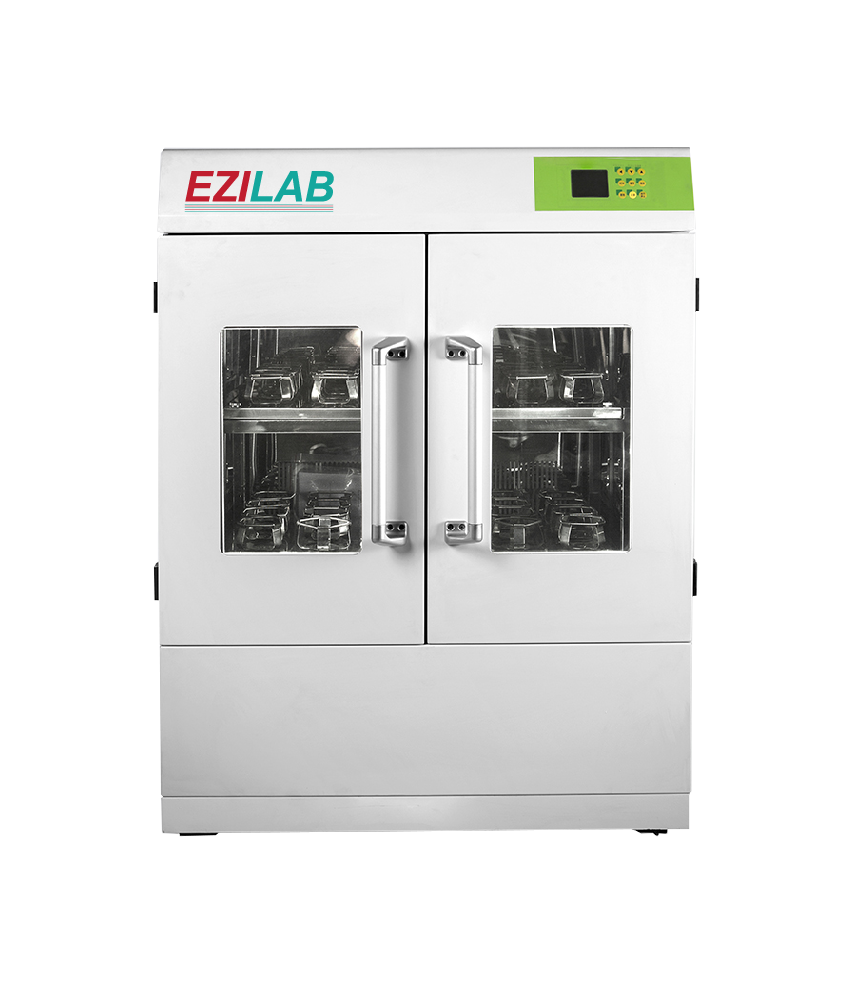

Shaker Incubator EZL-SI83 offers an economical and space saving option for bacterial culture applications and provides a usable volume of 582L with shaking tray area up-to 970×760 mm and excellent temperature stability of ±0.1°C. It has a swing amplitude of 26 mm with an LCD screen panel for parameter settings and can execute complex operations within a stipulated amount of time.

Specifications :

Volume	582 L
Shaking Speed	40 to 300 rpm
Speed Accuracy	± 1 rpm
Swing Amplitude	φ 26 mm
Temperature Range	4°C-60°C
Standard Configuration	250ml×45 or 500ml×37
Maximum Capacity	25ml×90/500ml×74/1000ml×36/5000ml×8
Tray Size	970×760 mm
Tray Included	2
Temperature Accuracy	± 0.1°C
Temperature Uniformity	± 1°C
Timing Range	1-9999 Minutes
Power Rating	1420 W
Power Supply	AC 220V-240V ± 10%, 50-60 Hz
Volume (W×D×H)	109.5×62.5×85 mm
Exterior Dimension (W×D×H)	120×82×160 mm
Net Weight	425 kg

Features :

• - It is a combination of an incubator and a shaker
• - Flask clamps, plastic clamps, funnel clumps and dedicated platforms are provided
• - The shell is made of high-quality steel, and the chamber is polished stainless steel
• - Panel with a sloped design and a large LCD display
• - A data memory function is available to eliminate faulty operation
• - Non-volatile memory that, when power is restored, the unit will automatically restart as originally programmed
• - The heating is switched off and audible and visual alarm are alerted if the measuring temperature deviates from the set temperature by 3°C
• - Complex and quick refrigeration system for faster cooling and automatic defrost
• - A high-torque motor for continuous operation
• - A large view window and built-in lighting for easy observation
• - Low noise, luxury and leak resistant

Applications:

These double layer shaking incubators have been designed specifically for modern biological engineering departments, and include bacterial, tissue, germ cultures, yeast and liquid culture incubation, culture plates, fermentation, hybridization and biochemical research. All of these tests require high temperature performance as well as a stable vibration frequency.
