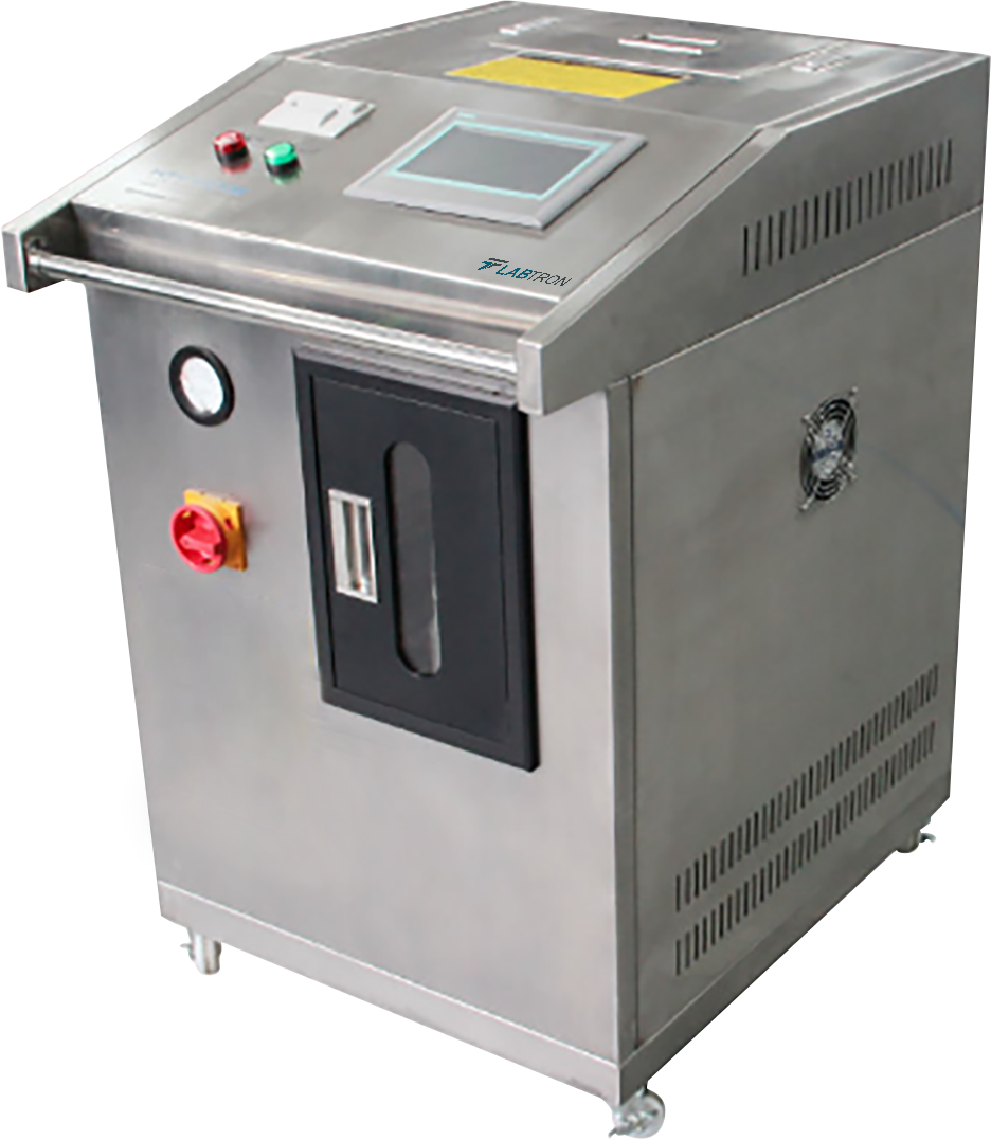

Vapour Hydrogen Peroxide Generator LVHG-A10 Catalog

Overview

Vapour Hydrogen Peroxide Generator LVHG-A10 is specially designed device for sterilization in enclosed spaces such as isolation room, isolator, transfer passageway, blending machine, biosafety cabinets and in small clean room. It takes the advantages of the hydrogen peroxide has better sporicidal efficiency in gas state than the liquid state at room temperature and then generated free hydroxyl groups are this to attack cell components, including lipids, proteins and DNA organization, which achieves the requirement of complete sterilization.

Specifications :

Injection rate	0 to 4 g/min
Air flow for Sterilization	≤ 2.4 m3/min
Vaporization Temperature	≤ 100 °C
Humidity for Dehumidification	≤ 30 % RH
Sterilizing Space	≤ 503
Sterilizing Agent	35 % of food grade hydrogen peroxide solution
Capacity of Sterilizing Agent	500 g
Dehumidizer	Molecular sieve
Sterilizing Ratio	106 for fat thermophilic spore
Working Mode	Continuous
Ground Wire	In effective connection with ground and ground impedance with no more than 4Ὼ
Environment Temperature	20°C to 40°C
Relative Humidity	≤ 70% RH
Compressed Air	≥ 0.4 MPa
Compressed Air Flow	36 L/min
Interface of Connected Air	Air pipeline at 8
Noise	≤ 70 dB (A)
Dimension	560 × 720 × 1000 mm
Power Supply	AC 220 V ± 22 V, frequency 50 Hz ± 1 Hz
Power Requirement	2500 W

Features :

• - Fast sterilization cycle, cost-effective
• - Hydrogen peroxide has excellent material compatibility for validation
• - Secure under the room temperature and atmospheric pressure
• - Connected to materials of imported silicone tube and aseptic bayonet
• - Designed by dehumidification function to adjust, control humidity and temperature
• - Adopts data online printing function with colour touch screen display
• - Stearothermophilus killing capability is 106 by broad-spectrum sterilization
• - Alarm function interface
• - Good compatibility of hydrogen peroxide and gas material

Applications:

Vapour Hydrogen Peroxide Generator is applicable in hospitals, monitoring technologies and pharmaceutical companies, sterilize fungi, bacteria, viruses and spores.
